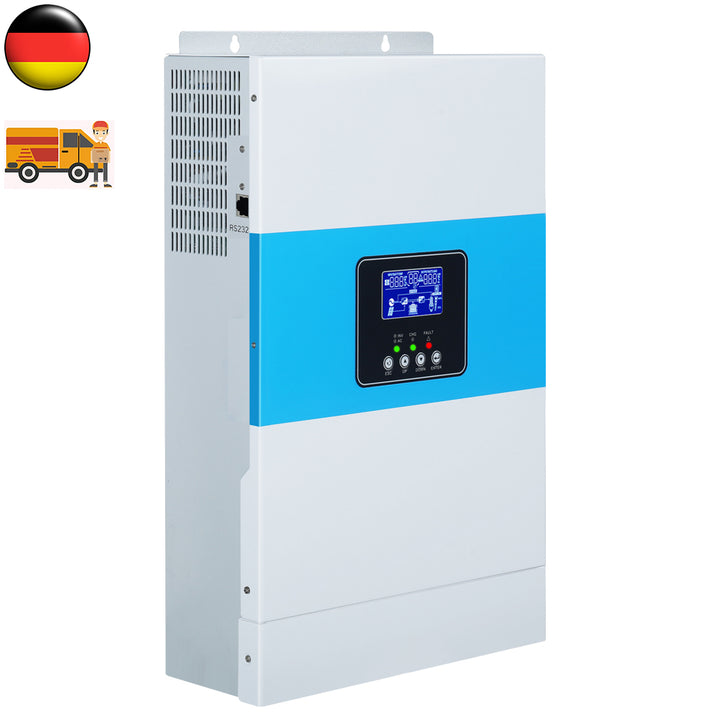

Y&H 5.5KW Solar Hybrid Inverter 48VDC MPPT 100A Charger Max 500VDC PV Input 220VAC Off Grid Pure Sine Wave Inverter With WIFI Communication



Warranty service:
Our products provide 2-year free warranty and permanent after-sales services.



Y&H's new hybrid all-in-one inverter,combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation.Imported electronic components are used to ensure the stable performance of the inverter.


1.Pure sine wave inverter

2.6.0 KW MPPT Charger

3.Solar charger of the maximum charging current is 100A

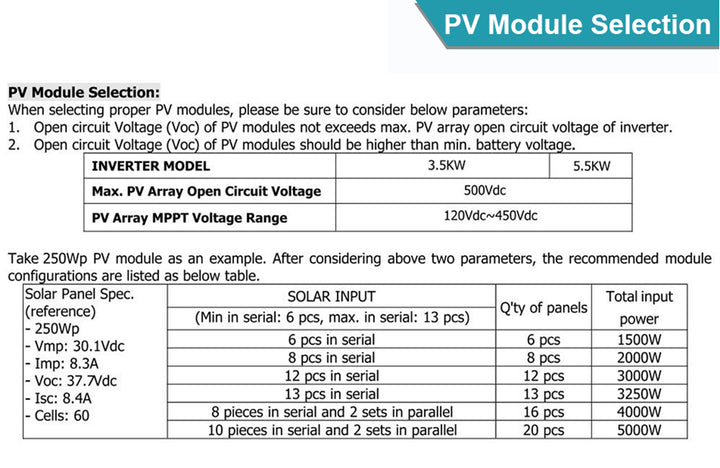

4.120-500V wide PV input(The startup voltage is recommended to be greater than 150V, and the open circuit voltage Voc is recommended to be lower than 450V)

5.Compatible with 48V lead-acid and lithium batteries.

6.Can work no battery(The solar panel voltage must be 200V or higher.)

7.Generate power from PV directly to supply load, even without battery

8.PV to AC efficiency is much higher

9.Overload/ Over temperature/ short circuit protection

10.Smart battery charger design for optimized battery performance


This is a wide voltage hybrid inverter.The Minimum Of MPPT Operating Voltage Should Be 150V To Make Sure That The Device Start Working,And 360V Is The Best.
