Descriptions:

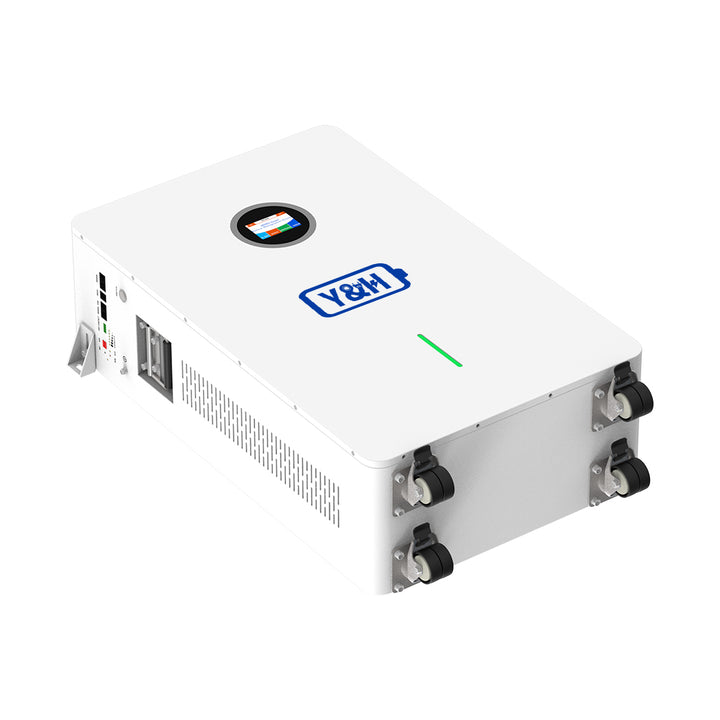

EB PLUS Floor type Lithium Battery adopts floor-standing design, which is easy to move. The battery uses brand new square lithium iron phosphate battery cell with a cycle number of more than 6,000 times, ensuring long-term use without reducing performance. At the same time, it supports multiple communication protocols, is compatible with different devices, and supports the use of multiple batteries in parallel to meet greater energy storage needs.
Specificities:
1.Using safe and eco-friendly LiFePO4 battery with MSDS,UN38.3.ROHS,IEC62619.UL
2.Equipped with BMS Battery management system tointelligently manage and maintain each battery unit
3.Low power and no relay design,milliwatt standby loss
4.Support for up to 16 batteries in parallel
5.6000+Cycle Life, intelligent balance
6.Quality of vehicle specification,high quality battery
7.Focusing on the layout of the whole industrial chainof advanced lithium battery key materials, batteriesbattery management and system integration, it hascore technology intellectual property rights
8.Higher energy density and efficiency
BATTERY | ||
MODEL | 51.2V 200AH | 51.2V 300AH |
Rated Voltage | 51.2V | |
Rated Capacity | 200AH | 300AH |
Rated Energy | 10.2KWh | 15.36KWh |
Output Voltage Range | 43.2V-58.4V | |
Charging Voltage | 57.6V-58.4V | |
Cut-off Voltage | 43.2V | |
Max.Charging Current | 100A | 150A |
Recommended Charging Current | 50A | 50A |
Max. Discharging Current | 100A | 150A |
Efficiency | 98% | |
Dimension H*W*D(mm) | 750*415*235 | 895*415*235 |
Carton Dimension ,H*W*D(mm) | 760*505*420 | 980*495*440 |
Net Weight (kg) | 89 | 120 |
Gross Weight(kg) | 115 | 142 |
Humidity | 5%~96% Relative humidity | |
Charging Temperature | -20°C~65℃ | |
Diccharging Tomperaturc | -20℃~60℃ | |
Storage Temperature | -10℃C~50℃ | |
Cycle Life | >6000 times(0.2C,@25℃,80%DOD) | |
Design Life | >10 years | |
Operating Mode | Press Button | Touchable Screen |
容量 |
EB PLUS 51.2V200AH-FL, EB PLUS 51.2V300AH-FL |
---|
