Y&H 10A/20A/30A/40A/60A Solar Charge Controller 12V 24V 48V LCD Display Adjustable Charging and Discharging Parameters


尺寸: 10A



Warranty service:
Our products provide 2-year free warranty and permanent after-sales services.

Y&H intelligent solar charge controller, designed with industrial-grade main chip and intelligent control for maximum efficiency and safety. Our controller is capable of identifying 12V and 24V automatic identification and features a 3-stage charging management design, making it suitable for a variety of batteries, including lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries, and more.APP only supports Android.Only supports short-range wireless operation(20m)

Using industrial grade main chip

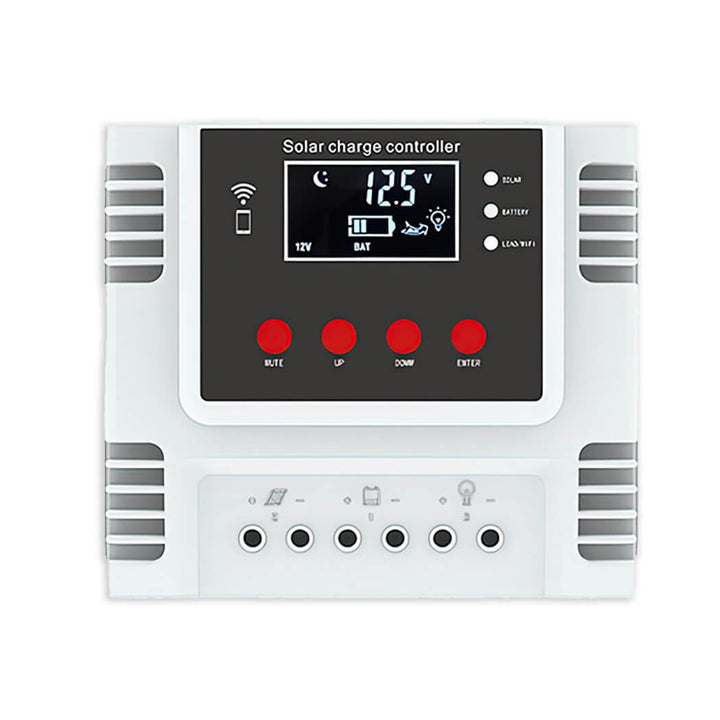

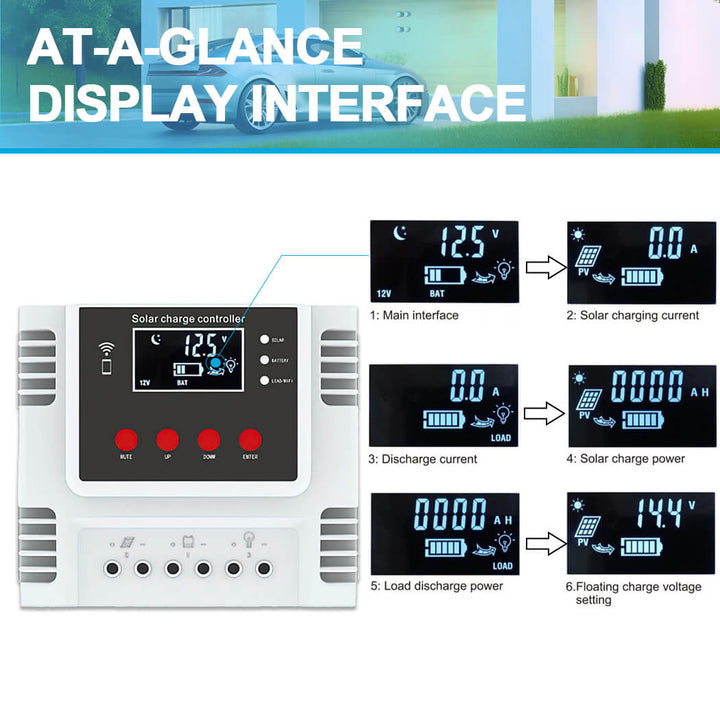

Large screen, LCD display, adjustable charging and discharging parameters.
Complete 3-stage PWM charging management.
built-in near-charge protection, short-circuit protection, open-circuit protection, reverse connection protection are self-recovery, no damage to the controller.

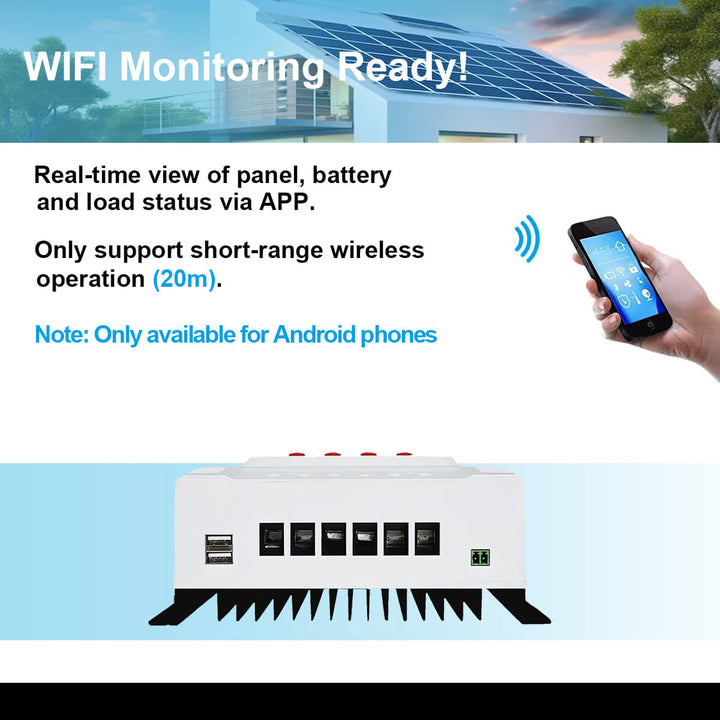

WIFI APP to check the working status of the machine at any time. (Note: Only available for Android phones)

Rated charging current:10A/20A/30A/40A/60A
Rated discharge current:10A/20A/30A/40A/60A
MAX PV Volt:12V system <25V;24V system <50V;48V system <100V
The USB output:5V2A MAX
Stand-by Curent:12V< 80ma, 24V< 45ma, 48V< 30ma
Work Temperature:-20℃~+50℃
for Lead-acid battery/B1;Ternary lithium battery / B2;Lithium iron phosphate battery/ B3

Parameter setting:
Click the corresponding option to set the device parameters.
float charging voltage, discharge recovery voltage, discharge cut-off voltage adjustable parameters ternary lithium battery and lithium iron phosphate battery float charging voltage cannot be adjusted;

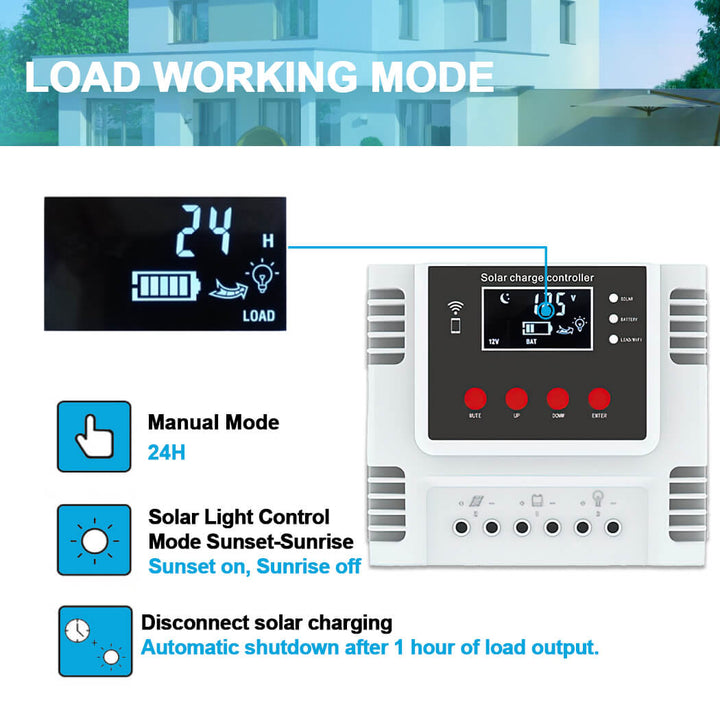

The adjustable parameters of load working mode range from 0 to 24; when the load working mode is 24, the load switch can be switched remotely, otherwise the operation is prohibited;
WIFI Only support short-range wireless operation (20m).Only available for Android phones
Additional Information

10A, 20A, 30A, 40A, 60A
