Description
Describe:
This is a multi-function inverter charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size. Bulit in 80amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
Technical Specifications:
1.5KW Hybrid Solar Inverter
Model: SM PLUS-1.5KW-12V-M80A
Max.PV Input Power: 2000W
Voltage range: 130-430Vdc
Max.PV Input VOC: 450VDC
Starting voltage >130V
Recommended PV cable size: 16AWG
Max. charge current: 80A
Nominal Input Frequency: 50/60Hz
Output Power: 1500W
surge Capacity: 3000W
Fit for 12V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery (Need to be set via the “User-Defined”).
Features:
Pure sine wave inverter

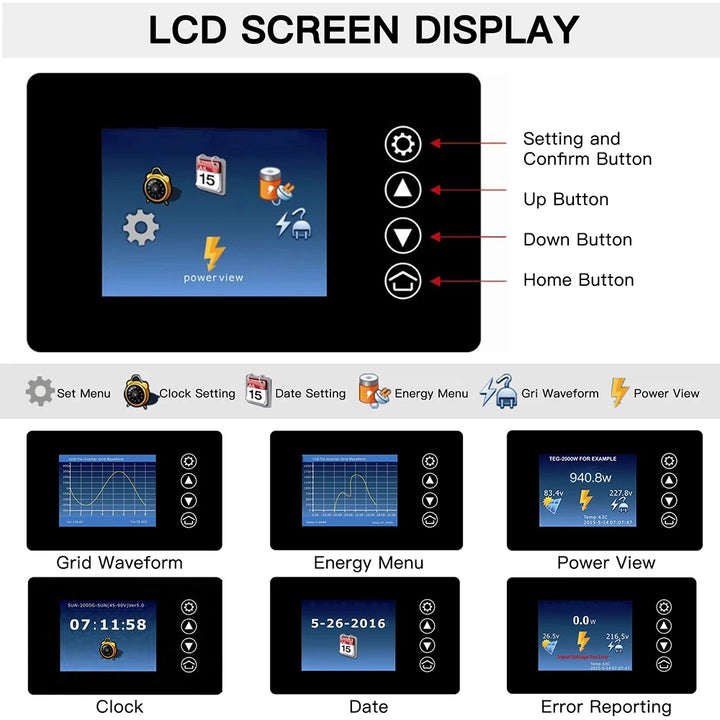

Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting
Configurable AC/Solar Charger priority via LCD setting（Battery charging mode and load working mode can be set）
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection
Smart battery charger design for optimized battery performance
Cold start function
WIFI/GPRS communication(Not included)
Four modes can be choose when charging battery:
Utility first: Utility will charge battery as first priority source, then Solar Power.
Solar first: Solar will charge battery as first priority source, then Utility Power.
Solar and Utility(default): Solar Power and Utility power will charge battery at the same time.
Only Solar: Solar Energy as the only source charge battery.
Three Output modes can be choose：
Utility first (default):Utility will provide power to theloads as first priority, Then Solar Power, battery Power
Solar first: Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time，then battery power.
SBU Priority: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time.
