1300W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
Technical Parameters:
Model: GTI-1300W-18V-220V
Solar panels:200W-1300W
The Voltage of Matched solar panel:Vmp: 17-21V, Voc: 20-24V
AC Output Voltage: 230VAC(190-260VAC)
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 10.8-32V
MPPT range: 15.5-23V.Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency
Certification:CE RoHS
Please note that this inverter is specially designed for solar panels, it can be applied to 12V solar panels, Vmp is 17-20V, Voc is 20-24V

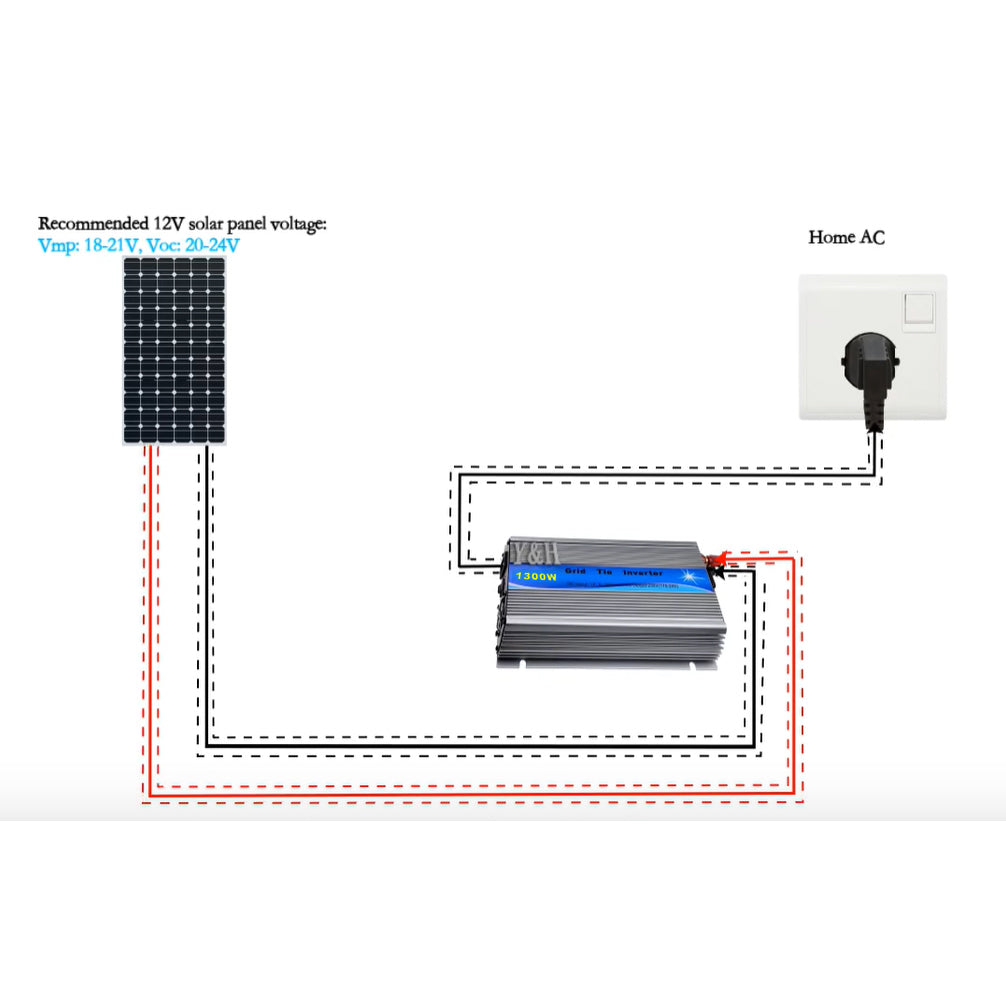

How to DIY Grid Tie Inverter Solar System?
DC10.8-30V version.
Please check the power of your solar panel, the power cannot be lower than 200W
Please check your solar panel voltage, open circuit voltage 20-24V (Voc)
Note: Please use solar panels with the same specifications

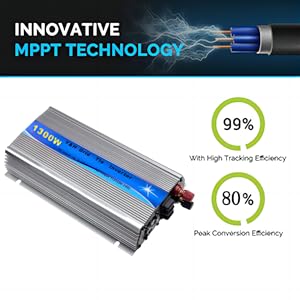

MPPT technology：
Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)

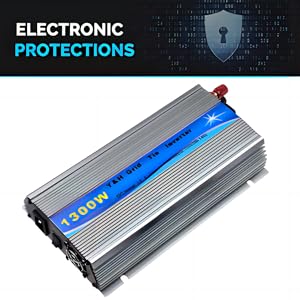

Multiple protections：
Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection

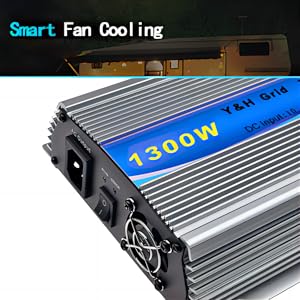

Fan Cooling：
Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.
Please be noted：
This grid tie inverter cannot be used as off grid/stand alone solar system. The output need to be connected to the grid power. Can not supply power directly to the AC loads.
DO NOT use solar controller load ports to connect to the inverter
Some buyers may have concerns about the output power not reach their expectations. Here is the reason.
This unit was ideally designed for a 18V solar panel If using 12v battery as input, the inverter will not reach it's max power point.

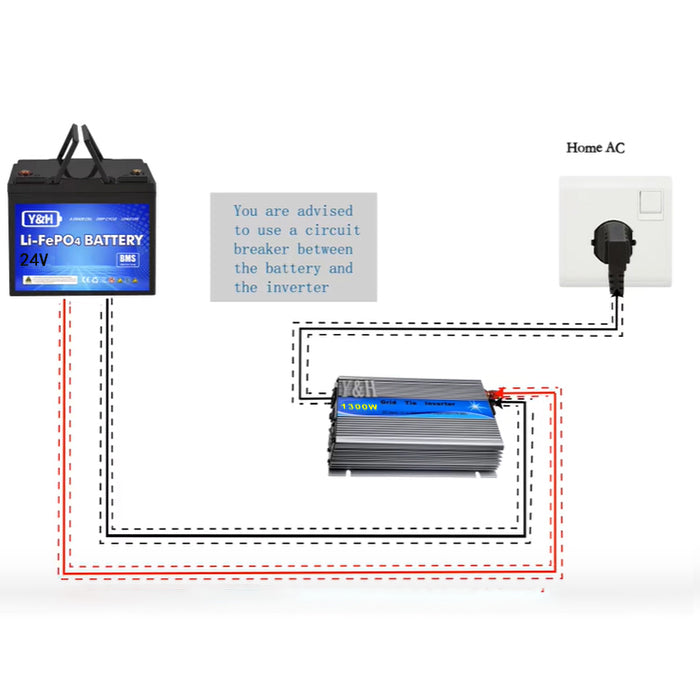

We will suggest using 24v battery as input source to get a better output power.
Use a battery to power the inverter, please use a circuit breaker.
