Y&H 1000W Stackable Grid Tie Inverter with Power Limiter Sensor DC26-60V Solar Input AC190V-260V Output



Warranty service:
Our products provide 2-year free warranty and permanent after-sales services.


User Manual[Download]

1000W Grid Tie Inverter converts DC power produced by Solar Panels to AC, connects to the grid and feed all of the power available from the panels to the AC load.Smart Micro inverter is synchronized and in-phase with the utility grid.The electric apparatus in the house will use power from the inverter first .If the Solar Panel is producing less power and the GTI cannot deliver all the power needed by the load, then power will be supplemented by the Grid.

It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will be charged for power even if it is given to the grid, and this is the problem

This is the 2nd generation grid tie inverter with limiter.
With the 2nd generation GTIL,we integrated the limit function inside the GTI-We call this internal limiter.In this way,No additional limiter module is needed,reduced customer’s cost,more easier for installation.But in case customer install inverter far away from the main circuit breaker,we also enable the 2nd GTIL work with stand-alone limiter,we call this-external limiter.For sure,the inverter can work under normal Grid tie-no limit mode,just set on the nice LCD and save your setting.

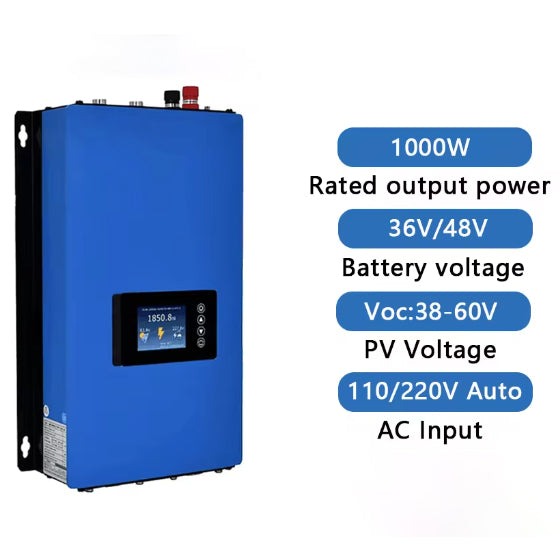

Model: SUN-1000GTIL2-M
Rated Power (Peak/Continuous): 1000W / 900W
DC Input Voltage: 22V~60V
Peak Power Tracking Voltage: 26~54V
AC Output Voltage Range:190~260V
Grid Tie Power Inverter starting voltage 26V
AC Output Frequency Range: 46Hz~65Hz

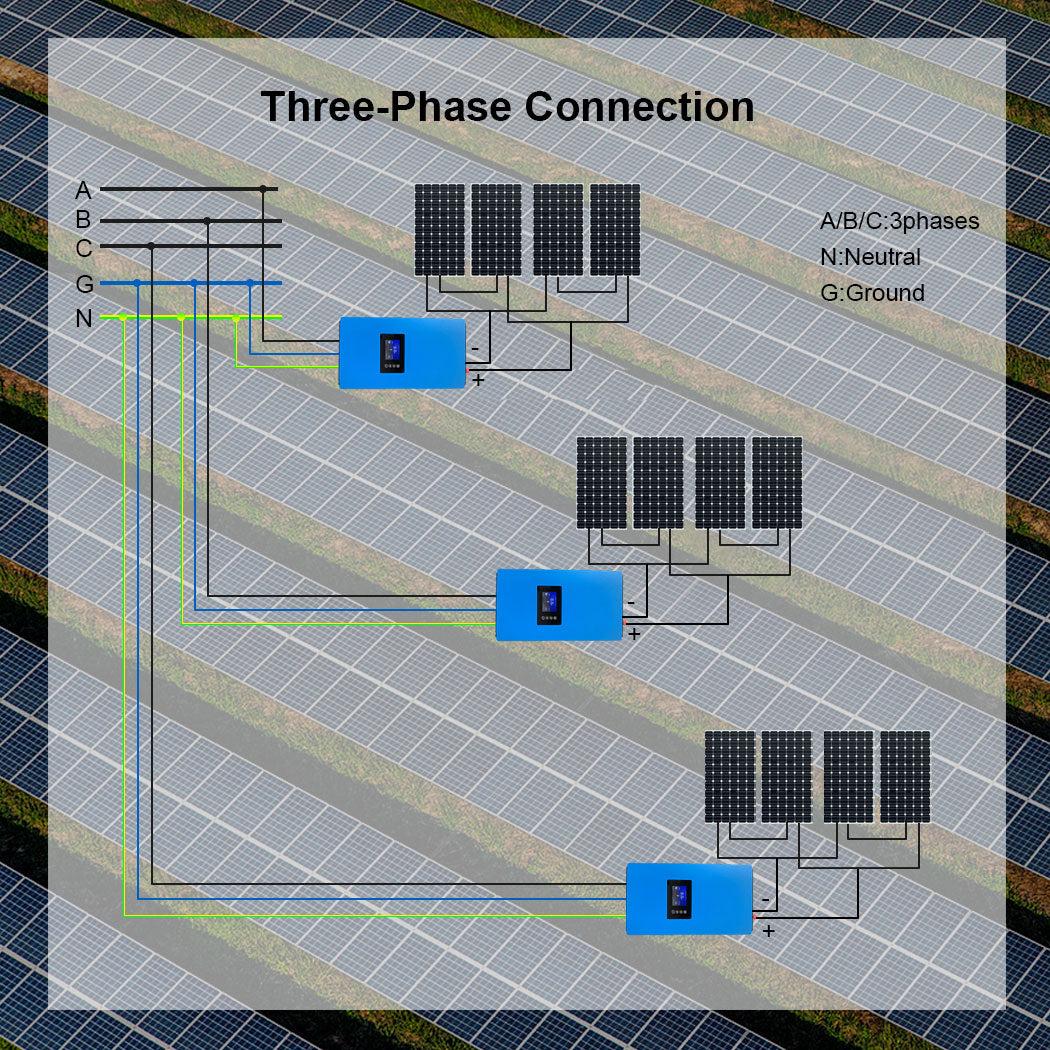

Stackable: Just for AC Output
Output Wareform: Pure sine wave

About input voltage :
The 22-60V model inverter will start up at 26V, after starting, the inverter can work in 22V-60V .Solar Panel Voc cannot be higher than 60V.

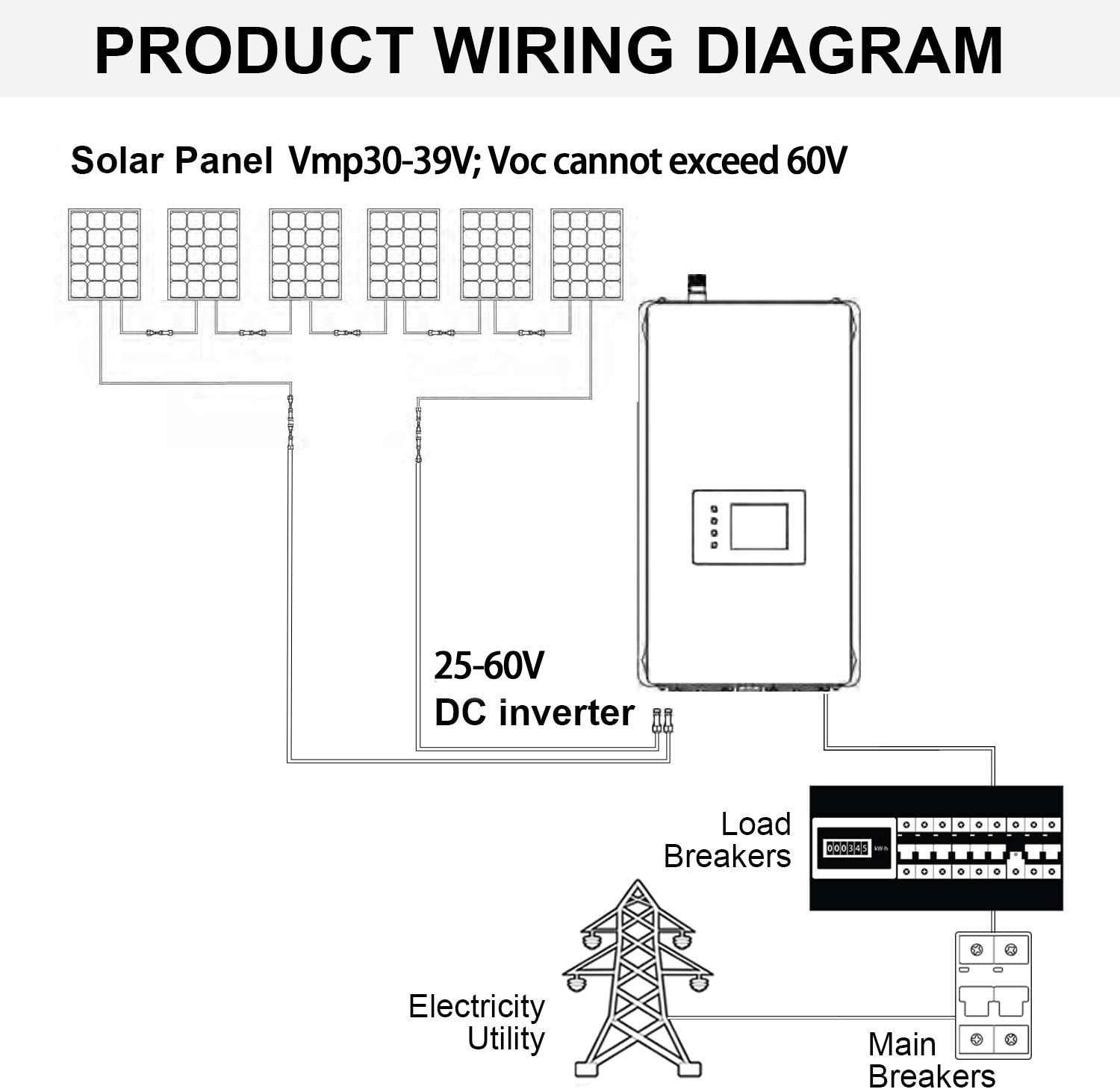

Vmp 30v-48v Solar panels connected in Parallel suggested, for example : 4 pcs 200-260w (Vmp 31v solar panels in parallel ).

Grid Tie Inverter DC Input 22-60V(Starting Voltage 26V)

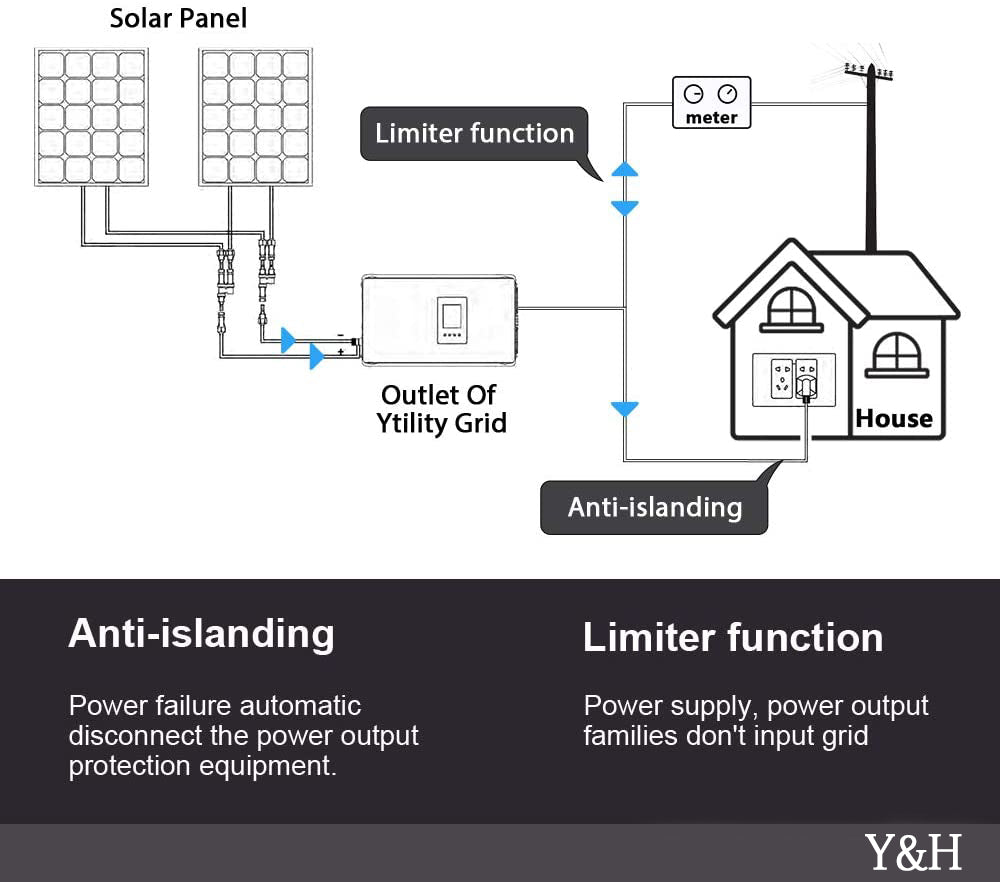

Grid Tie Inverter with Limiter Sensor.Delivers only the power needed by the load
Voc (solar panel) must not exceed 60V to ensure good output efficiency

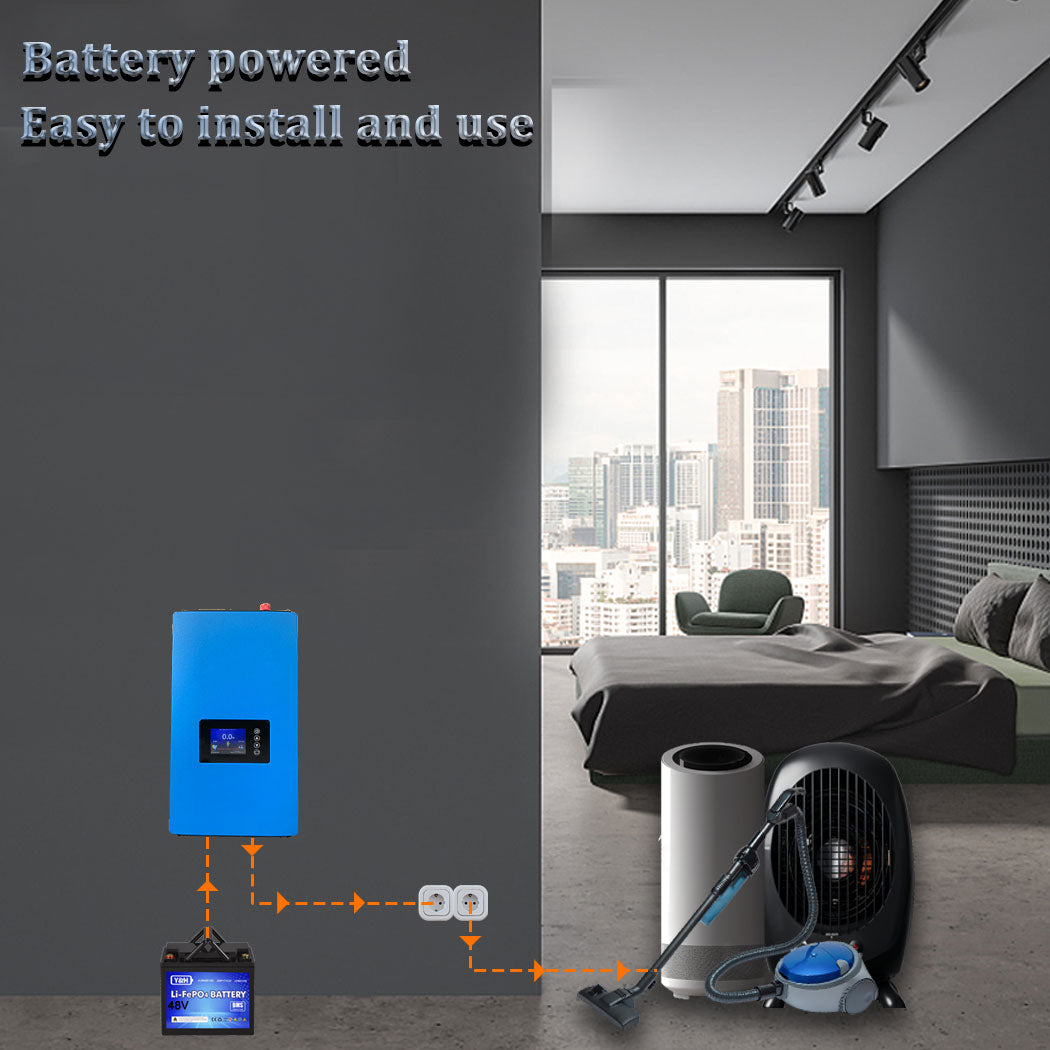

Battery discharge power mode, Can auto regulate depth of discharge of the battery bank
Micro Inverter Max Power Point Tracking and AC Stackable,Anti-island protection

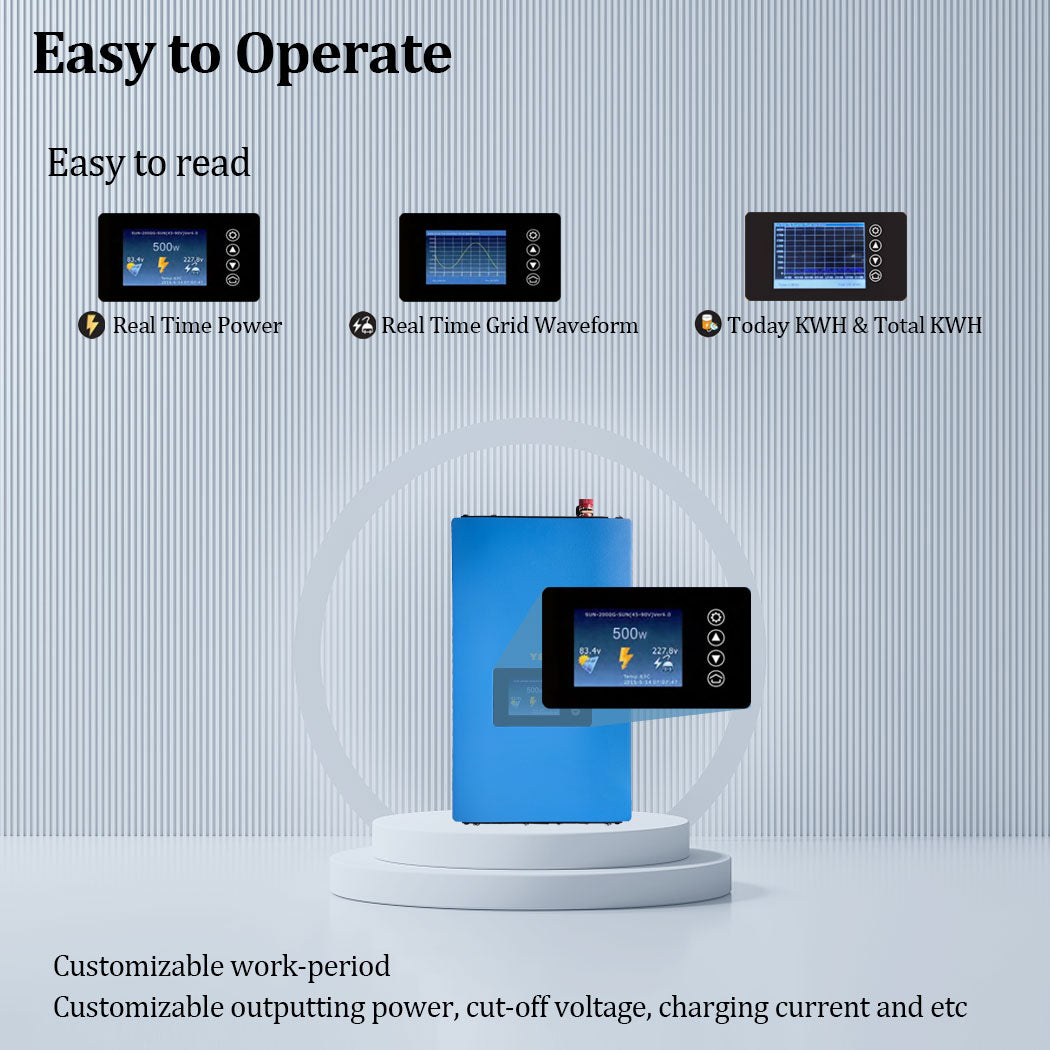

Intelligent LCD display various parameters

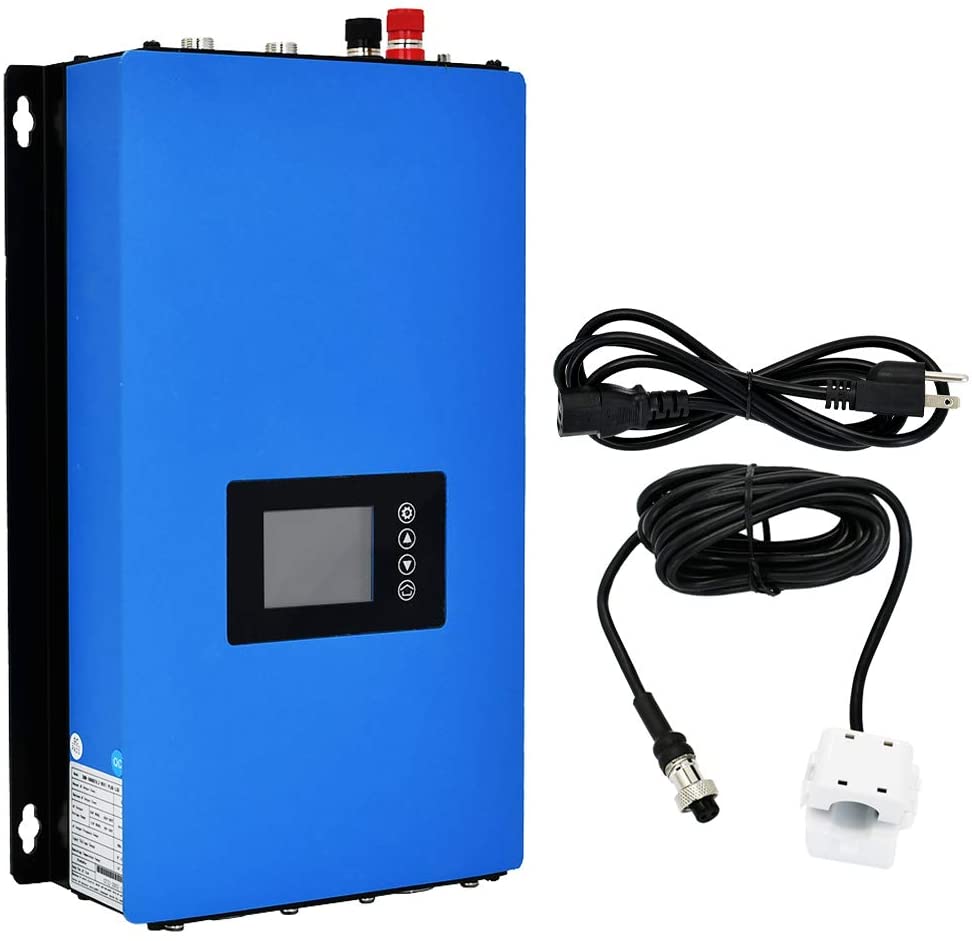

Package including:
1 x On Grid Inverter with Limiter(built-in)
1 x AC cable
1 x Internal type Limiter clamp with sensor & 2m cable
1 x English User Manual
