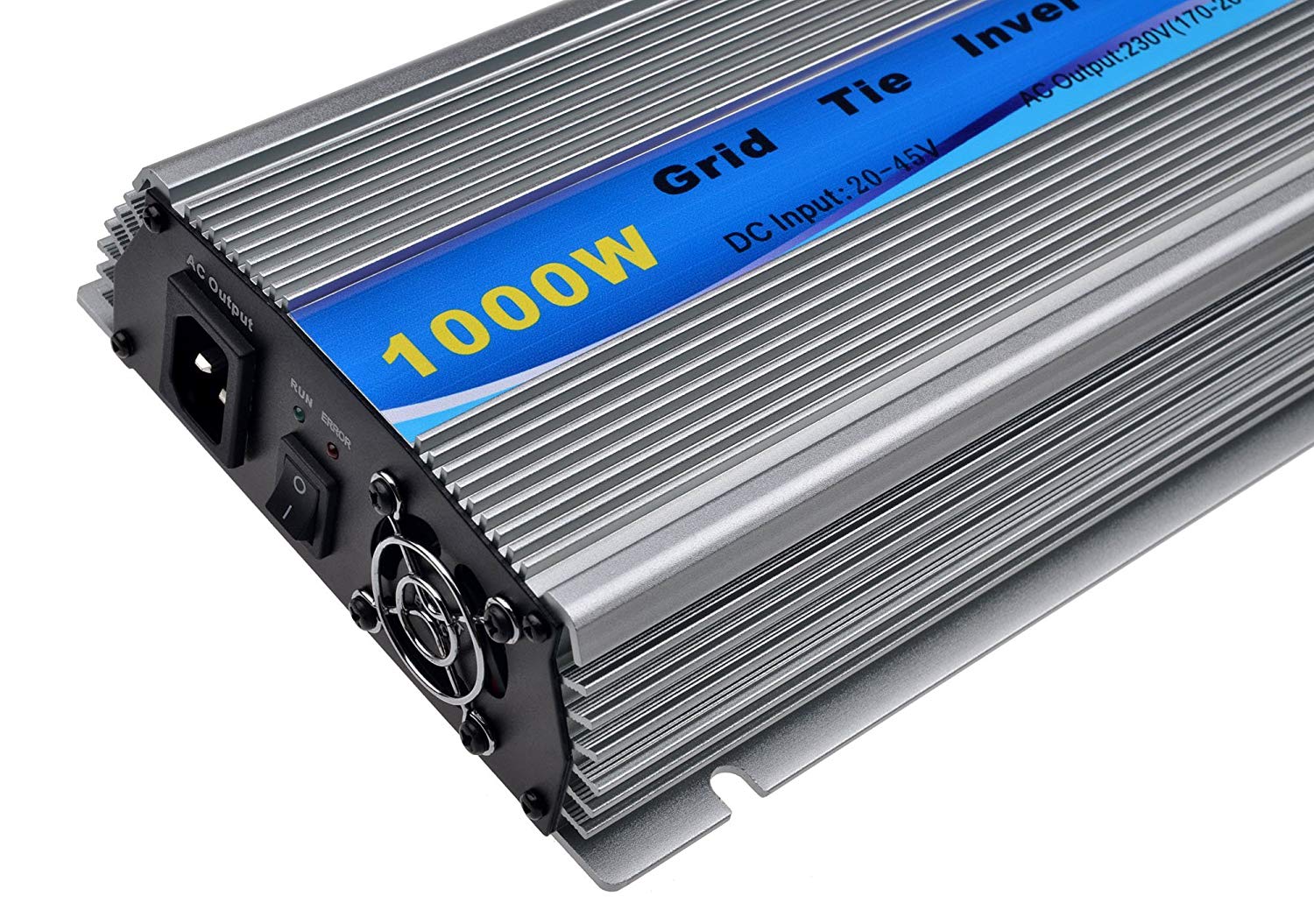

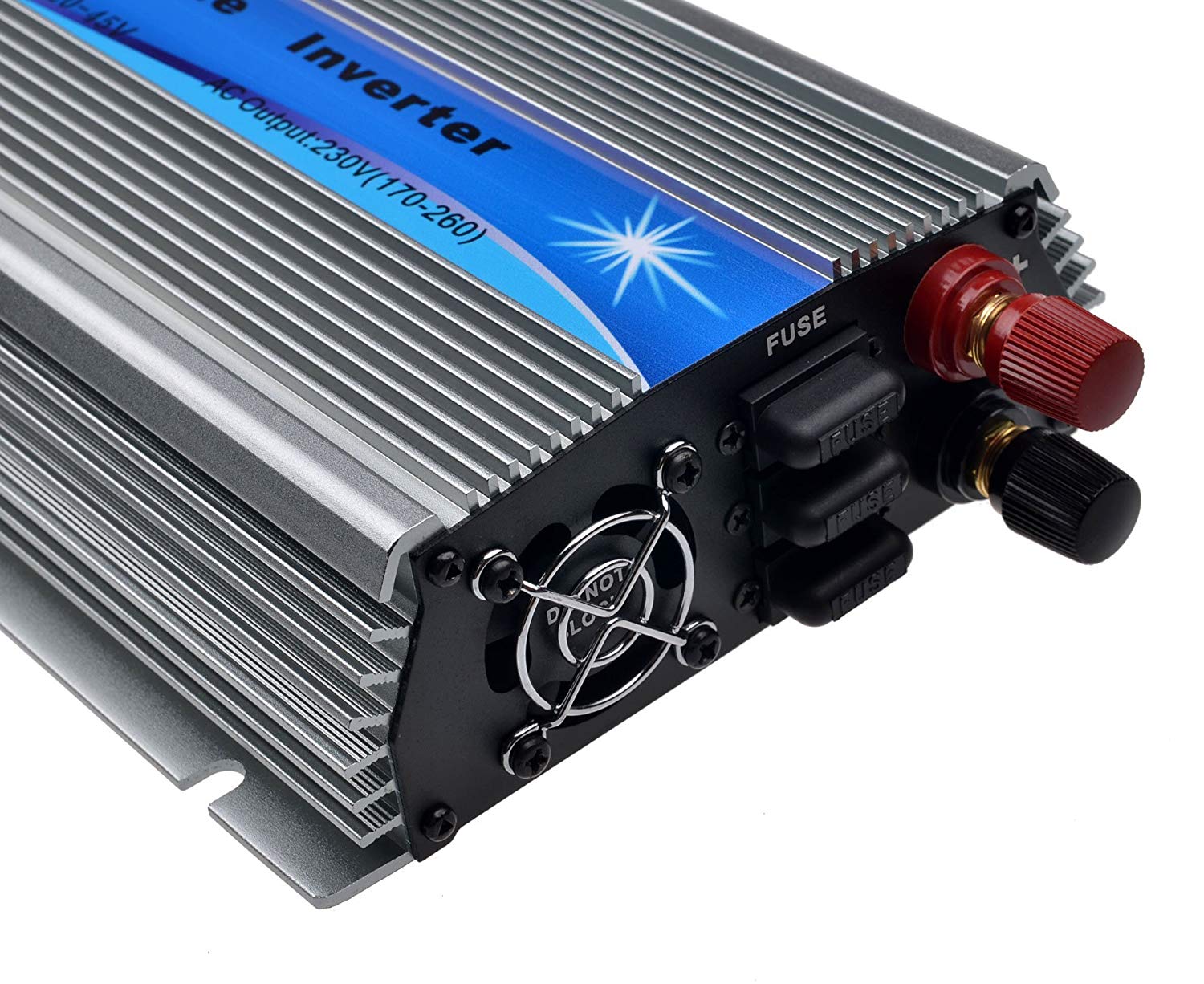

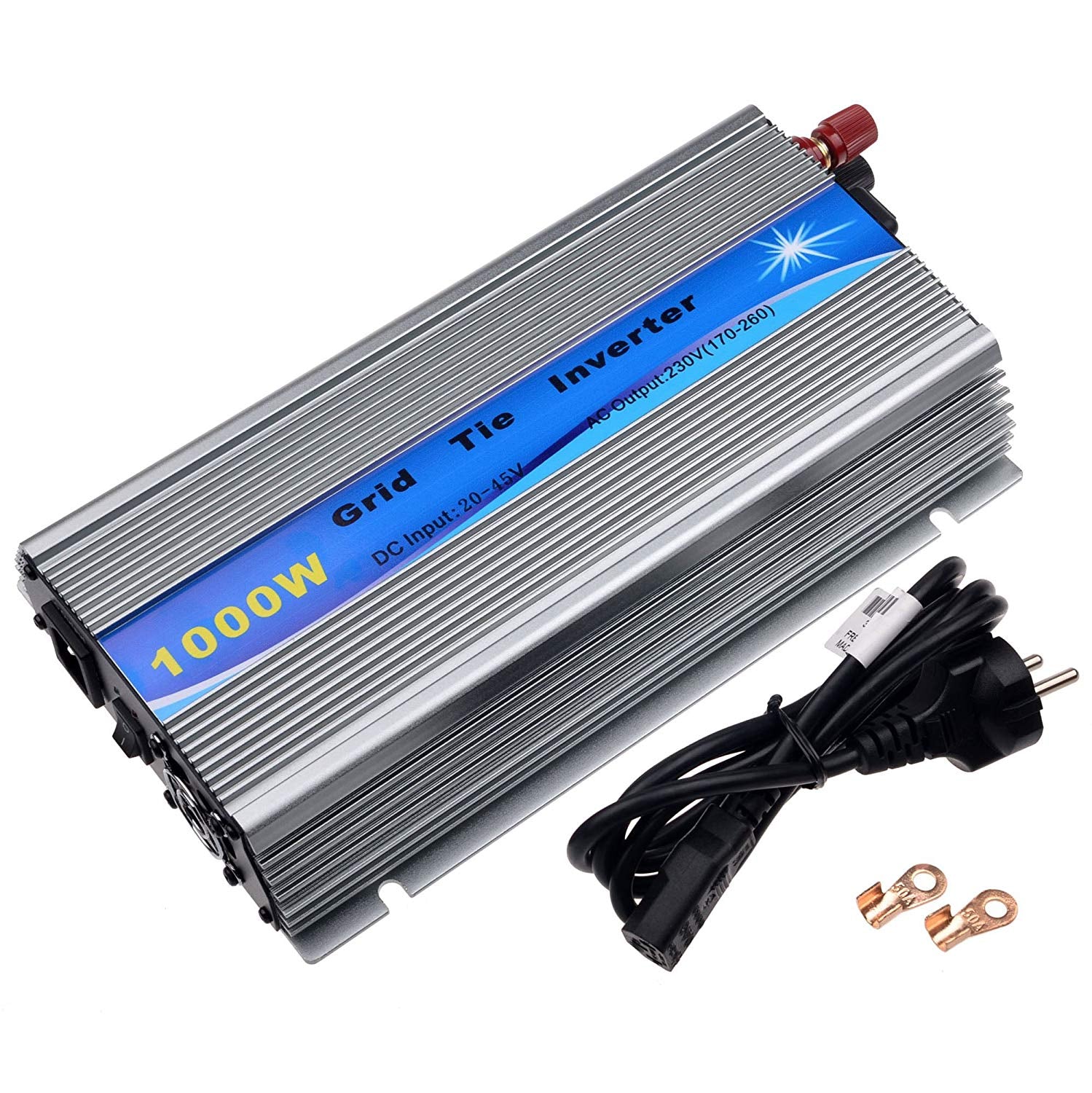

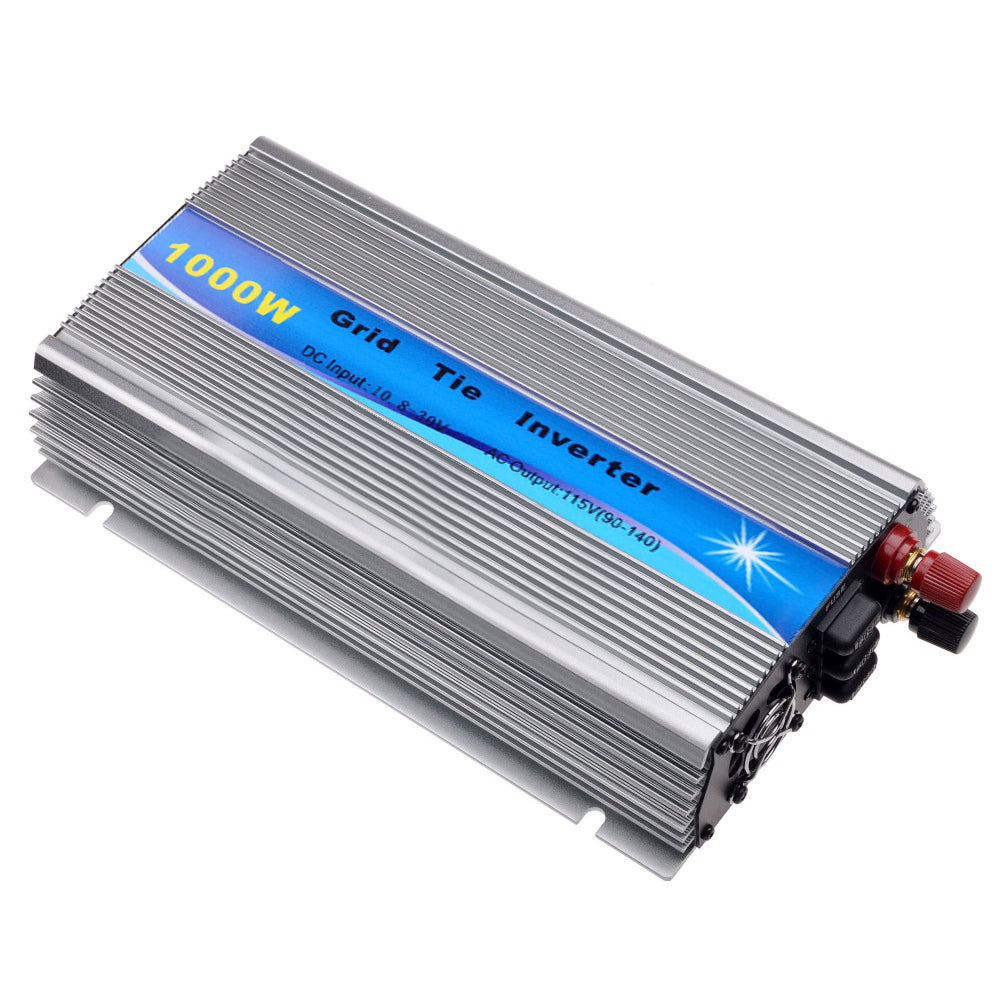

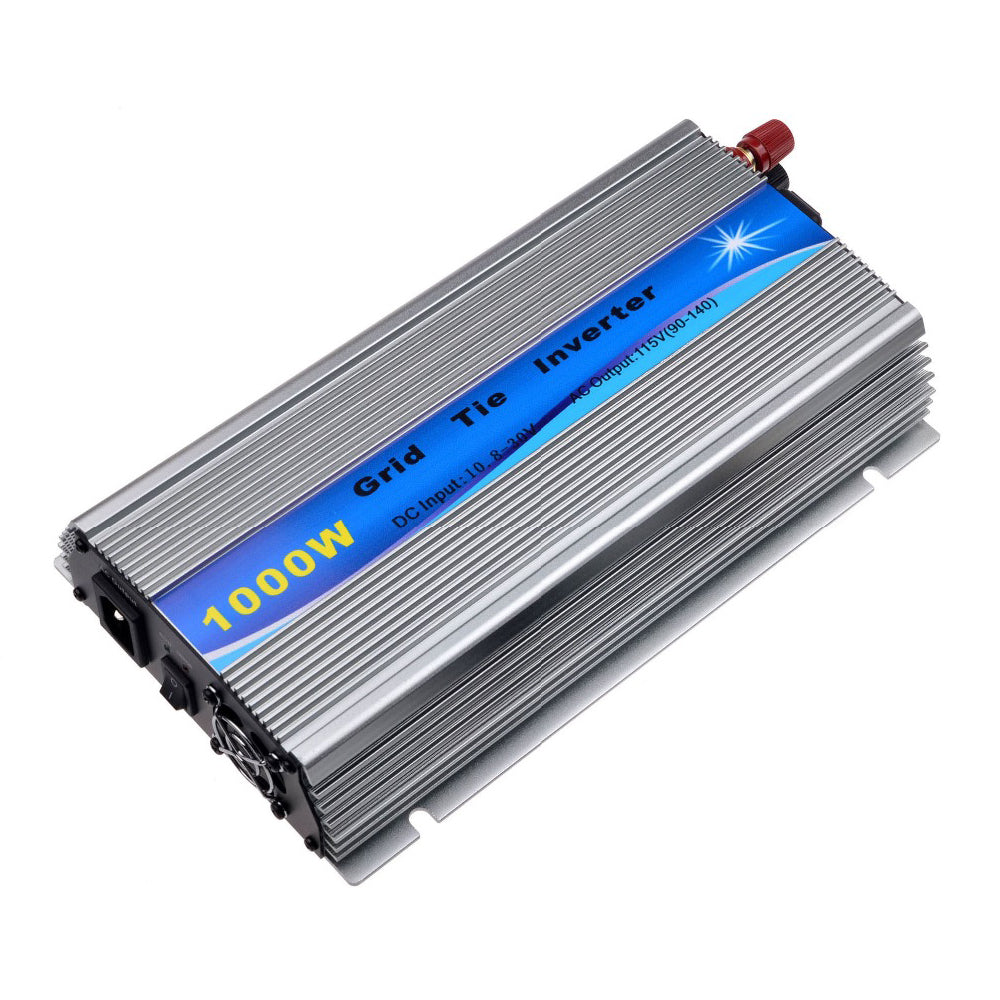

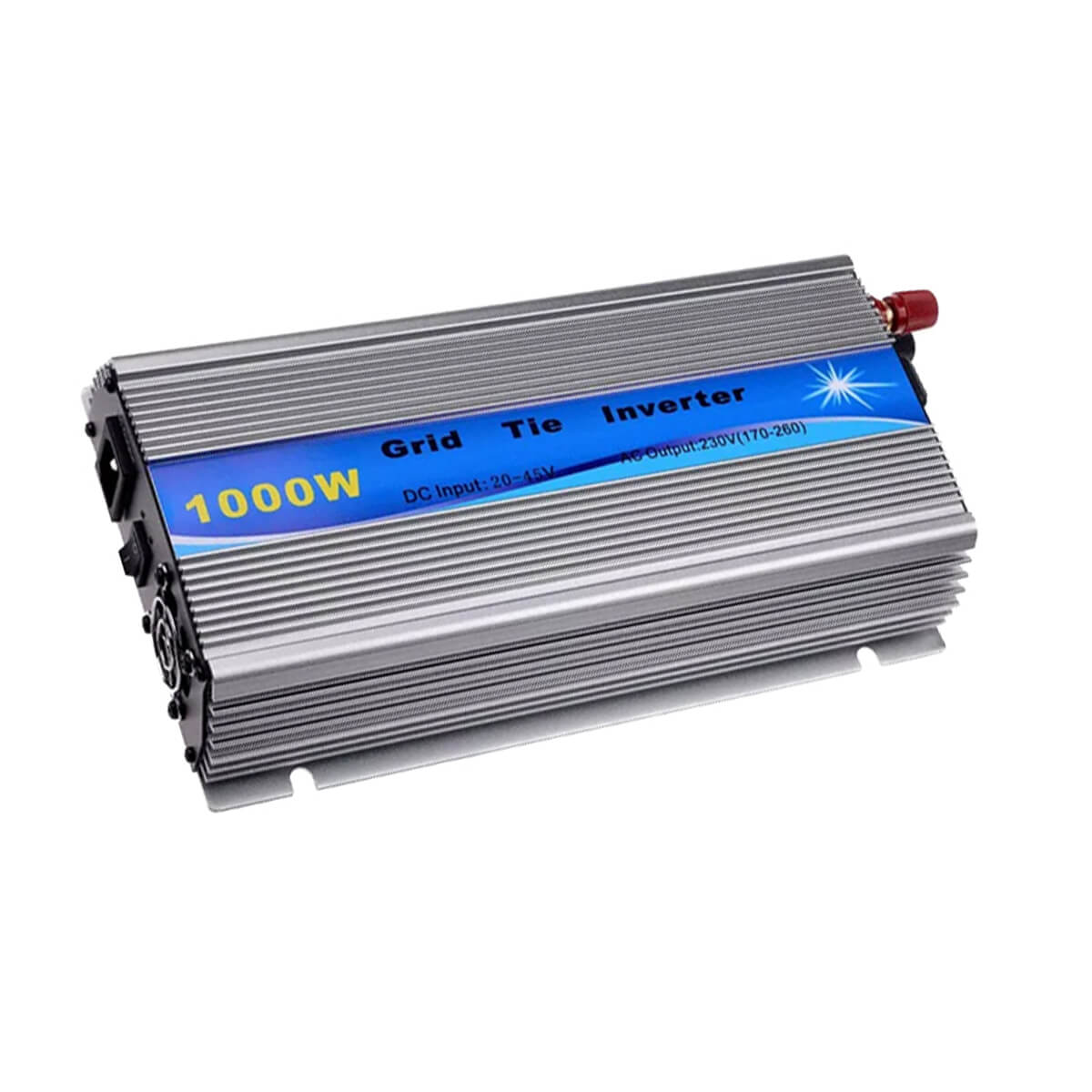

Y&H 1000W 30V/36V 220VAC Grid Tie Inverter MPPT Function Pure Sine Wave Inverter



Warranty service:
Our products provide 2-year free warranty and permanent after-sales services.


User Manual[Download]

1000W Grid Tie inverter is a compact unit,which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.

Technical Parameters:
Model: GTI-1000W-36V-220V-S
Solar panels:200W-1000W
The Voltage of Matched solar panel:Vmp: 26-39V, Voc: 34-45V
AC Output Voltage: 230VAC(190-260VAC)
Frequency Range: 48Hz ~ 62Hz Auto
DC Input: 22-50V
MPPT range: 26-39V.Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency
Certification:CE RoHS

DC20-45V version:
Please check the power of your solar panel, the power cannot be lower than 200W
Please check your solar panel voltage, open circuit voltage 38-46V (Voc)
Note: Please use solar panels with the same specifications

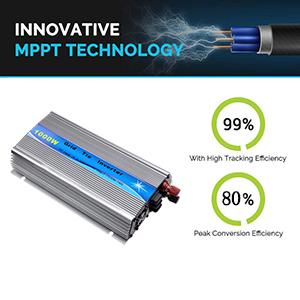

MPPT technology:
Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)

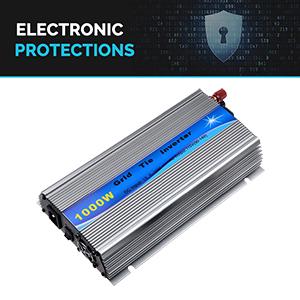

Multiple protections:
Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection

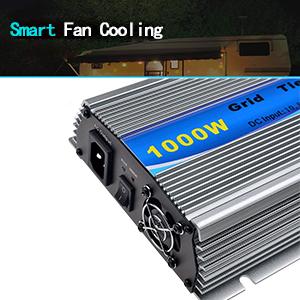

Fan Cooling:
Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.

Please be noted:
This grid tie inverter cannot be used as off grid/stand alone solar system. The output need to be connected to the grid power. Can not supply power directly to the AC loads.
DO NOT use solar controller load ports to connect to the inverter
It will perfect compatible with solar panels at 30V or 36V (Vmp)
It cannot be used with 12V/24V/48V battery.

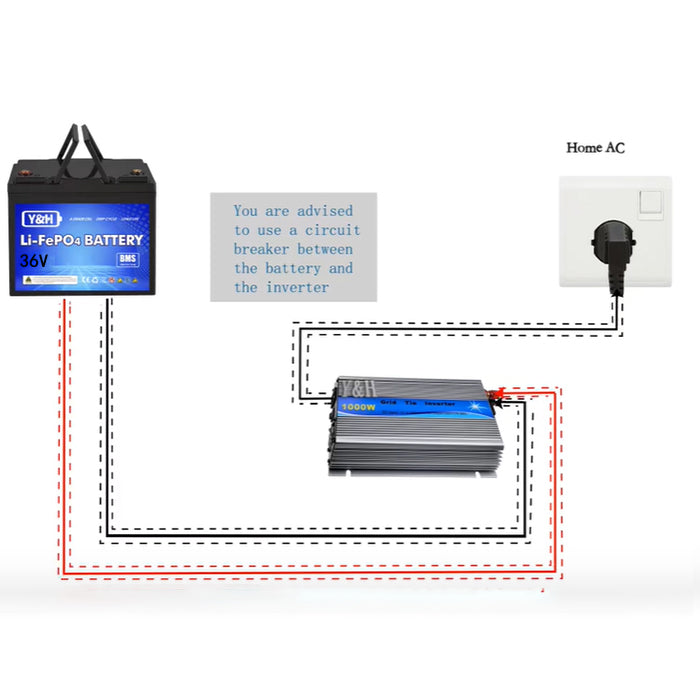

Only use the 36V battery to power the inverter
Use a battery to power the inverter, please use a circuit breaker.
Mechanical meter:
Excess electricity will be uploaded to the grid, reducing electricity bills. For smart meters, it will increase the electricity bill. so you need to choose the version with limiter.
