Description
【PWM Charging】
20A: Intelligent identification of 12V/24V system voltage.
30A: Intelligent identification of 12V/24V system voltage.

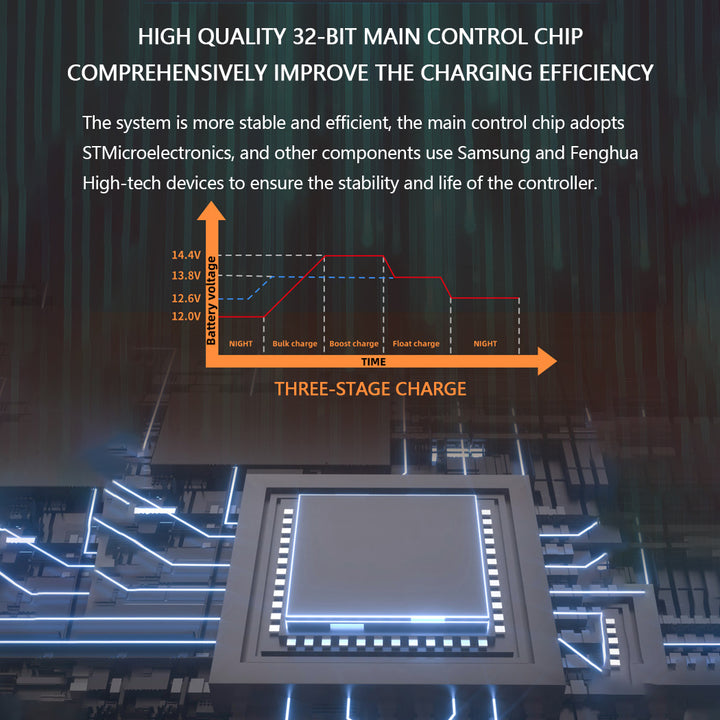

60A: Intelligent identification of 12V/24V/48V system voltage.Intelligent 3-level PWM charging - fast charging, boost and floating charging modes to optimize battery performance and extend service life.
【Safety】Built-in comprehensive electronic protection against overcharge, overdischarge, overload, short-circuit, battery reverse connection, with night-time anti-reverse, over-temperature protection, multiple protection to ensure stable operation of the system.
【High-definition LCD screen】Real-time display of voltage, current, power and other key parameters, support historical data query, convenient to monitor the system status, optimize the management of power consumption and improve operational efficiency.
【Match your battery in all directions】Compatible with Sealed, Gel,Flooded and LiFePO4, Li(NiCoMn)O2 batteries, support battery temperature compensation (except lithium batteries), adapt to different application scenarios for home users.
【Load Mode】Support universal mode, light control mode, light time control mode, can automatically control the load operation according to the sunshine situation, improve the energy utilization rate, to meet the different application scenarios, suitable for street lamps, home electricity and off-grid system.
Features:
1. Adopting imported 32-bit MCU
2.Automatic identification of 12V/24V system
3.3 stages PWM charging
4. Suitable for sealed, gel, open type battery and lithium battery.
5. High-definition LCD display design
6. Built-in work log function, can be statistical system operation status
7. Load mode: universal, light control, light time control
8. Temperature compensation function (except lithium battery)
9. Over-charging, over-discharging, load overload and short-circuit, battery reverse connection, night-time anti-reverse, over-temperature protection.

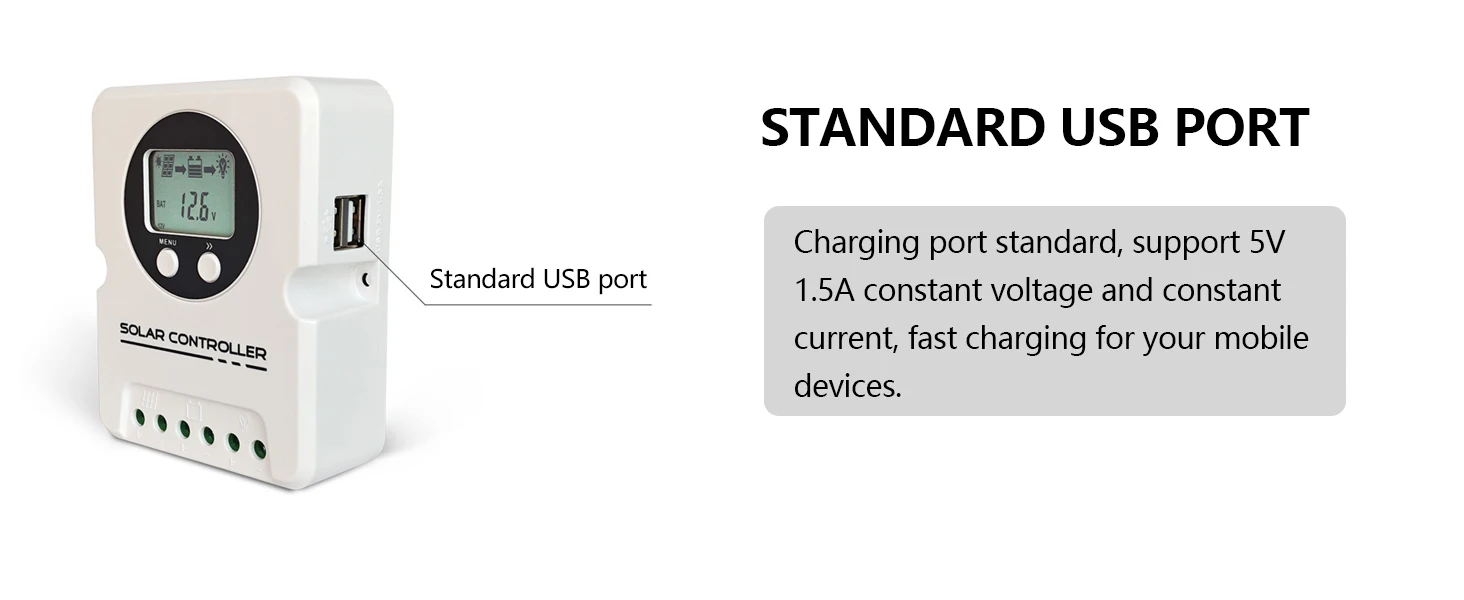

10. USB output interface
11. Lithium activation function
Additional Information
| 电流 |
10A, 30A, 60A |
|---|

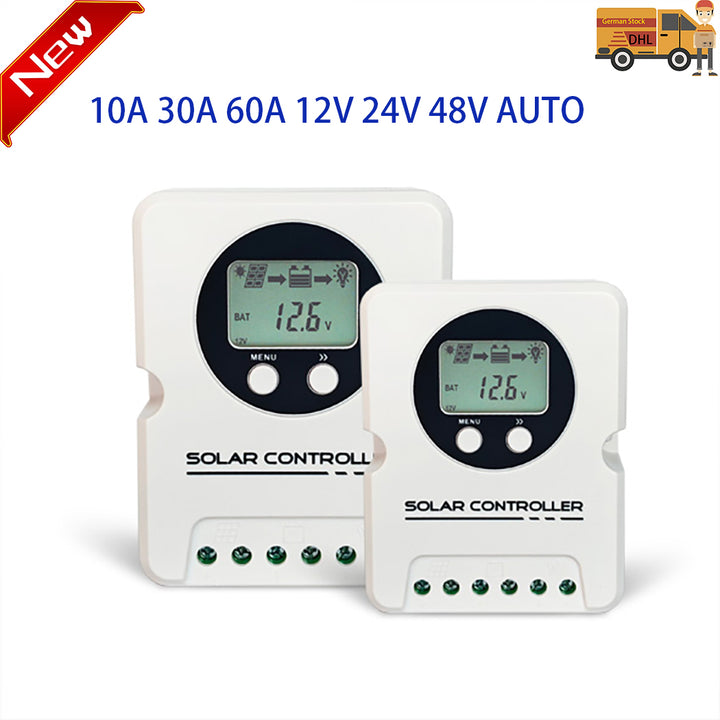

Y&H 10A 30A 60A Solar Panel Charge Controller 12V 24V 48V Battery Regulator with Dual USB fit for Sealed, Gel,Flooded and LiFePO4, Li(NiCoMn)O2 battery
10A
