For 12V:Grid Tie Inverter MPPT Range 11-21V.As the DC voltage gets closer to 11V, the inverter works less efficiently;

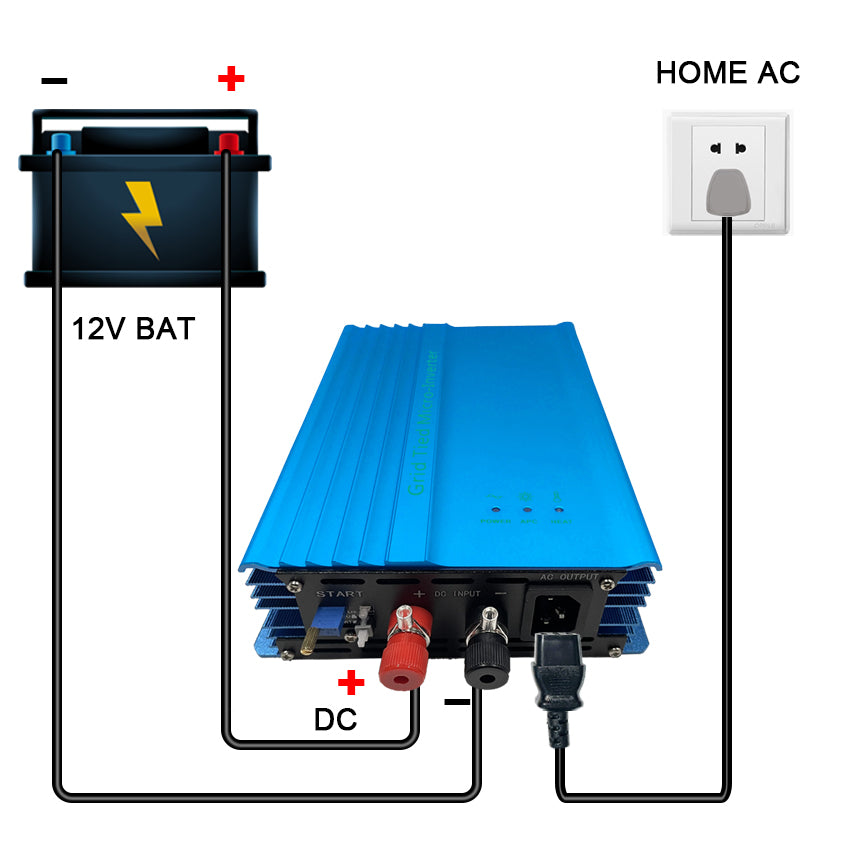

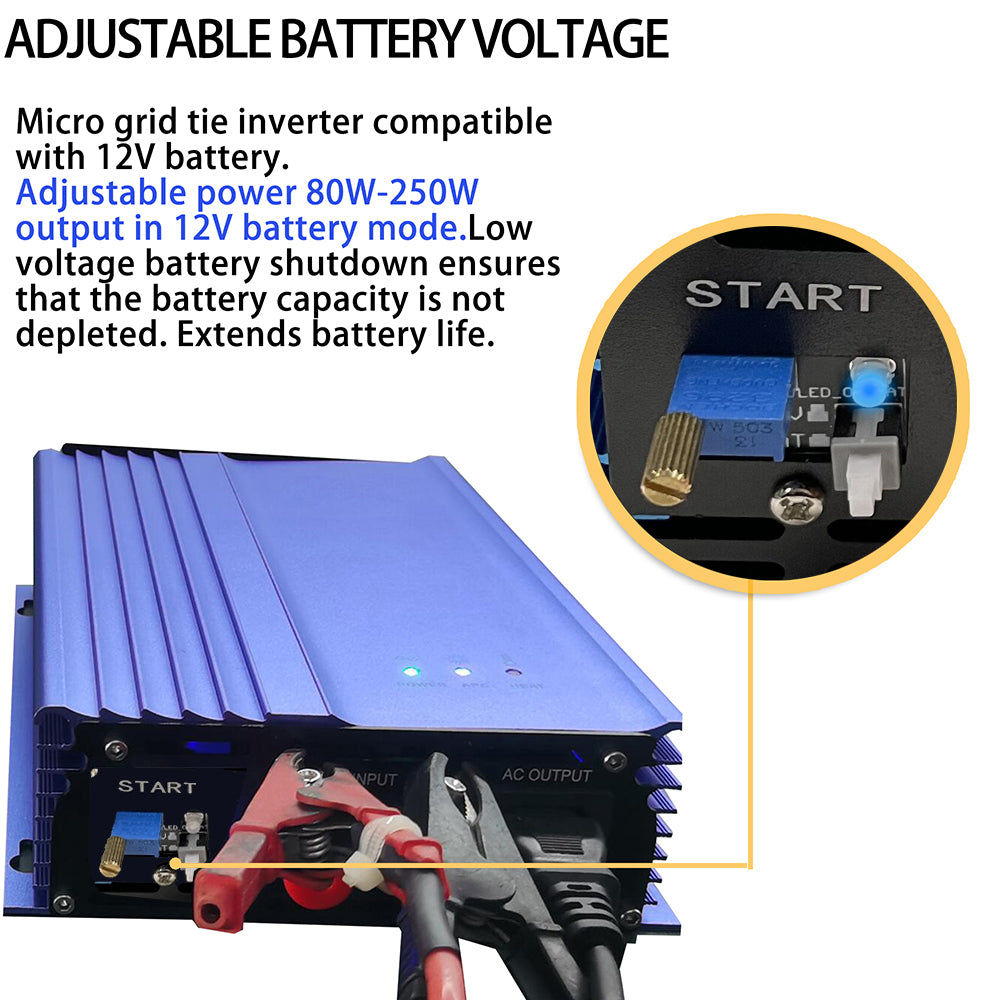

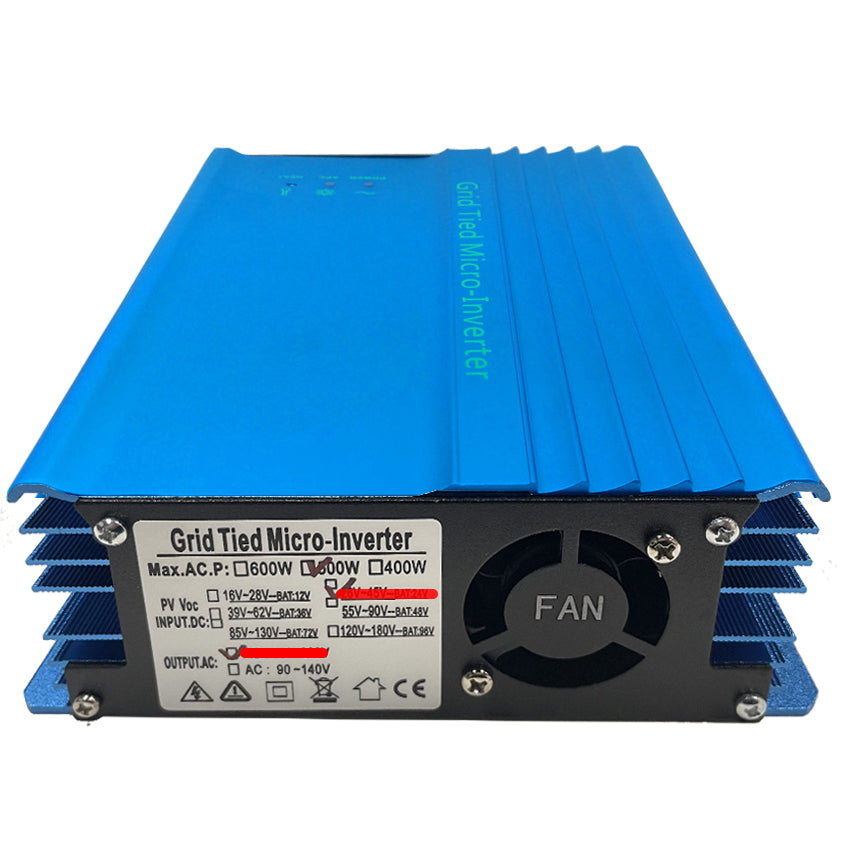

Micro grid tie inverter compatible with 12V battery. Adjustable power 80W-250W output in 12V battery mode.Low voltage battery shutdown ensures that the battery capacity is not depleted. Extends battery life.
For 24V:Grid Tie Inverter MPPT Range 24-35V.As the DC voltage gets closer to 24V, the inverter works less efficiently.
Micro grid tie inverter compatible with 24V battery. Adjustable power 80W-320W output in 24V battery mode.Low voltage battery shutdown ensures that the battery capacity is not depleted. Extends battery life.

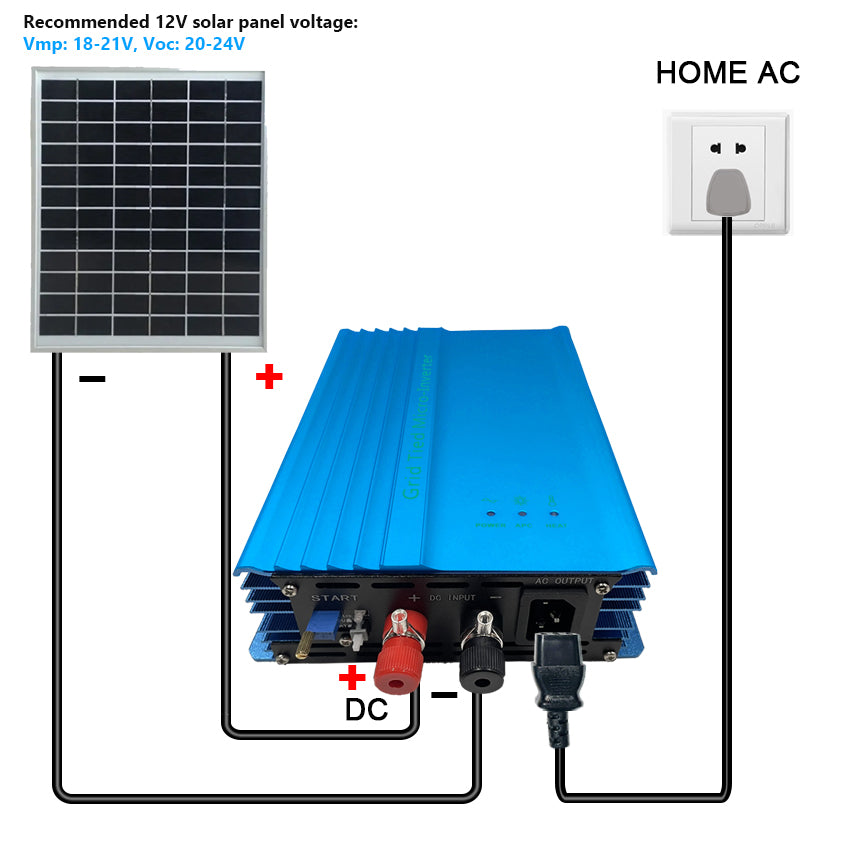

Vmp(of a solar panel) must be in the MPPT range to ensure the good output efficiency.
Micro Inverter Max Power Point Tracking and Stackable,Island Protection. If the DC connection is loose and causes a short circuit, then smoke may be emitted.The inverter adopts aluminum alloy casing, so there is no fire.
Advanced Anti-island technology.LED indicators distinctively showing status of system.Simple wiring, allowing you to easily obtain clean power.
The Grid-tied inverter is used in photovoltaic system, it maximises the output of photovoltaic solar energy from solar modules, and allows the energy to be converted and fed through the power utility grid for normal everyday uses.
1.Grid tied inverter uses high speed and high specification MCU from USA, so as to achieve a more efficient working
2.Advanced technology of Multi Power Point Tracking (MPPT) device in our system
3.High efficiency of MPPT is recorded to be over 99%.
4.Parallel connection on input of solar energy battery enable simple adjustment of the
5.power rate for the utility grid.
6.High efficiency on the design of High Frequency Transformer.
7.Advanced Anti-island technology.
8.High performance EMC technique on system protection, advanced modular design,ensuring safety and reliability on our systems.

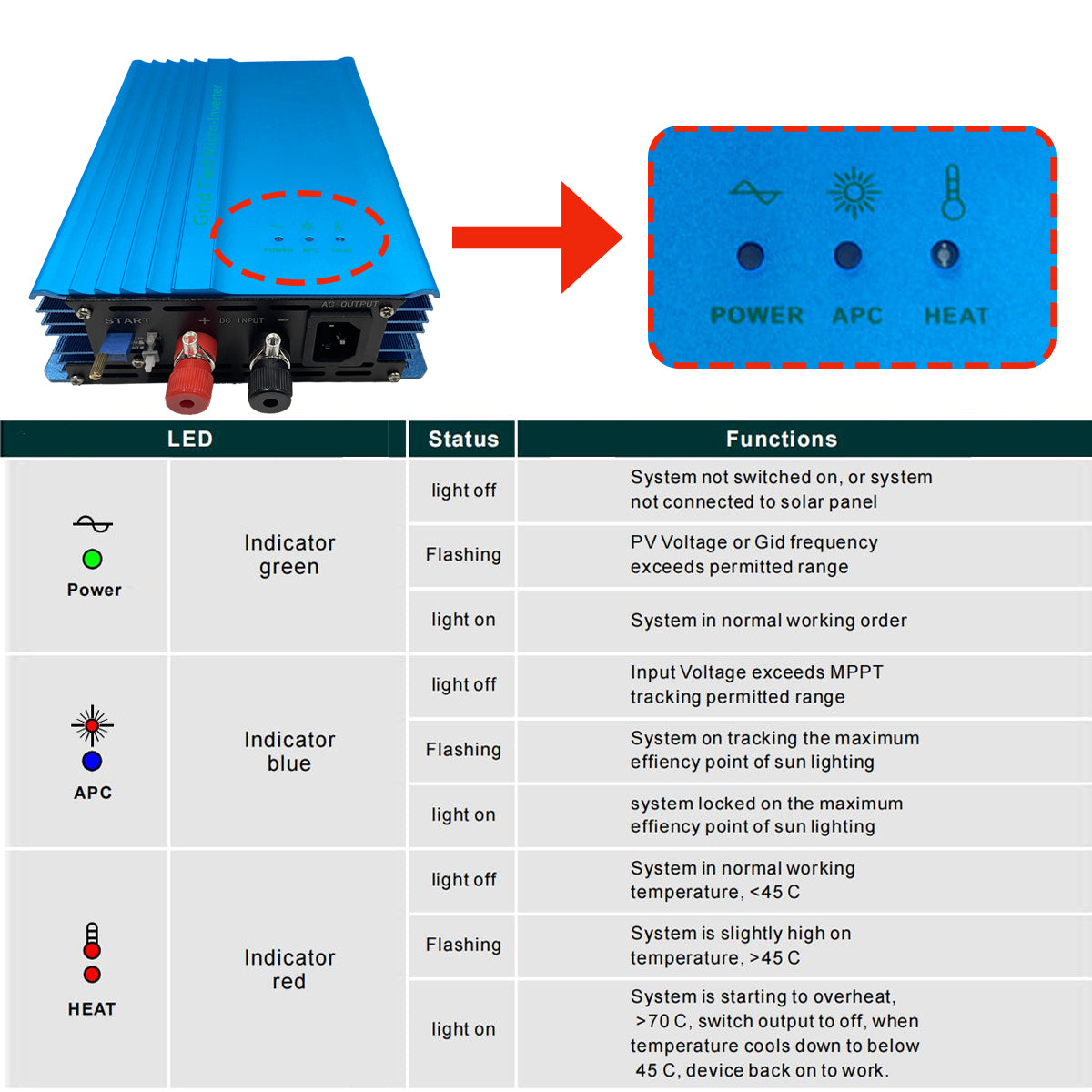

9.LED indicators distinctively showing status of system.
10.Portable size and light weight makes our inverter easy to install,operate,andmaintain.
Specifications:
| Rated Power | GTN-500W-12V | GTN-500W-24V |
| Input (DC) | ||
| PV open voltage range | 16V-28V | 26V-45V |
| PV MAX input power(W) | 500W | |
| MPPT Voltage range(V) | 11-21VDC | 22-34VDC |
| MPP tracking efficiency | >99% | |
| MAX.DC current(A) | 40A | 30A |
| Suitable for Battery voltage(V) | 12V | 24V |
| Battery Low Voltage | 11V | 22V |
| Protection(V) | ||
| Output(AC) | ||
| PV mode AC MAX output (W) | 500 | |
| Battery mode Max output power | 250W(with 14V or above) | 320W |
| AC output range | 220VAC(190-260VAC) or | |
| 120VAC(90-135VAC) | ||
| Frequency range | 50Hz(48~52) or 60Hz(58~62) | |
| Power Factor | >98% | |
| THD | <5% | |
| Phase Shift | <1% | |
| Stable real efficiency / 120V | 85% | 86% |
| Stable real efficiency / 220V | 86% | 88% |
| Other electrical data | ||
| Protection | Islanding; Short-circuit; Low | |
| Voltage; Over Voltage; Over temperature Protection | ||
| Work Temperature | ‘-25°C~ 65°C | |
| Work Humidity | 0%~90%RH non-condensing | |
| Grade of Waterproof | Outdoor design IP22 | |
| LED Show | R&G&B LED | |
| Cooling | Fan | |
| Stand-by Power | <1W | |
| Matching component: | Monocrystalline | |
| ,polycrystalline , thin-film solar panels. | ||
| Mechanical data | ||
| Net Weigtht | 1.8kgs/pc | |
| Gross Weight | 2.0kgs/pc | |
| Machine size(LxWxH) | 22.2x16.2x5.5CM | |
| Packing Size (LxWxH) | 30x22x12CM | |
| Current |
12V, 24V |
|---|
