600W MPPT Grid Tie Micro Inverter AC110V or AC220V for 24V/30V/36V Solar Panel Pure Sine Wave Inverter

€72,00 €64,99 AHORRE 10 %

current: AC110V for 24V Battery

AC110V for 24V Battery
AC110V for 36V Battery
AC220V for 24V Battery
AC220V for 36V Battery
Añadir a la lista de deseosComparar

PayPal

Servicio de garantía:
Nuestros productos ofrecen garantía gratuita de 2 años y servicio posventa permanente.

Descripción

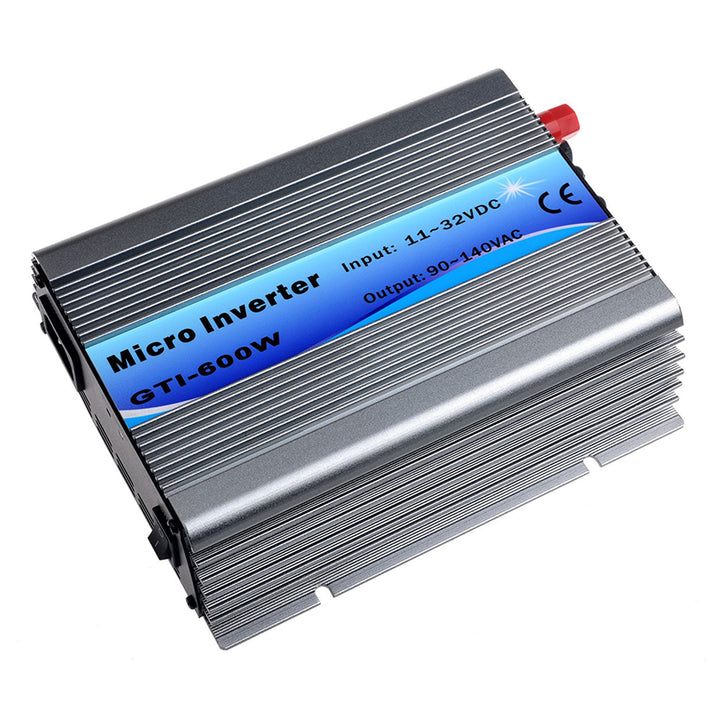

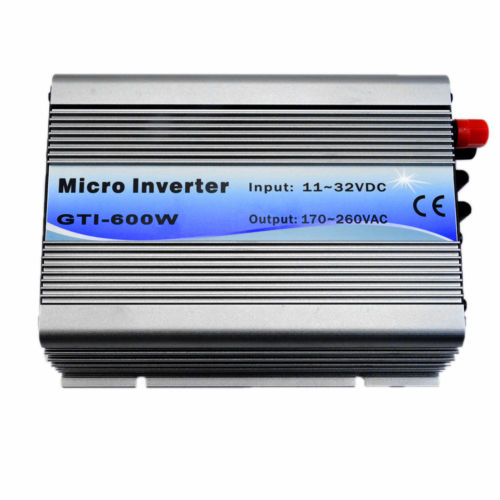

600W,DC16-28V Version:

600W Grid Tied Inverter, MPPT Pure Sine Wave Inverter

DC16-28V to AC230V, 50Hz/60Hz Auto

Fit For 12V Solar Panel 20V-24V (Voc);18V-21V (Vmp)
Solar Panel Power: Minimum 120W, Maximum 650W

with MPPT Function and Stackable

Certification: CE RoHS


DC16-28V version is suitable for 12V solar panel (Vmp18-20V; Voc20-24V)
Vmp = working voltage; Voc = open circuit voltage.
The starting voltage of the inverter is 16V. Therefore, the DC11V input cannot be used.
32V is only an instantaneous voltage, used as a buffer protection, not as a working voltage input. Otherwise it will damage the inverter.
The solar panel voltage will decrease with the intensity of the sunlight. After the inverter is started at 16V, it will work even if the panel voltage drops. We designed a wider voltage input range to allow the inverter to output more power. After the voltage is lower than 15V, the working efficiency will start to decline.

Smart Grid Tie Microinverter Technical Parameters:

Rated Power 600W
Solar Panels ≥600W
DC Input Range 16-28VDC
MPPT Voltage 15-22VDC
AC Output 120V(90-140V) or 230V(190-260V)
Frequency 48Hz-62Hz
THD <5%
Power Factor >97.5%
Stand-by Power ＜1 W
Certification CE RoHS

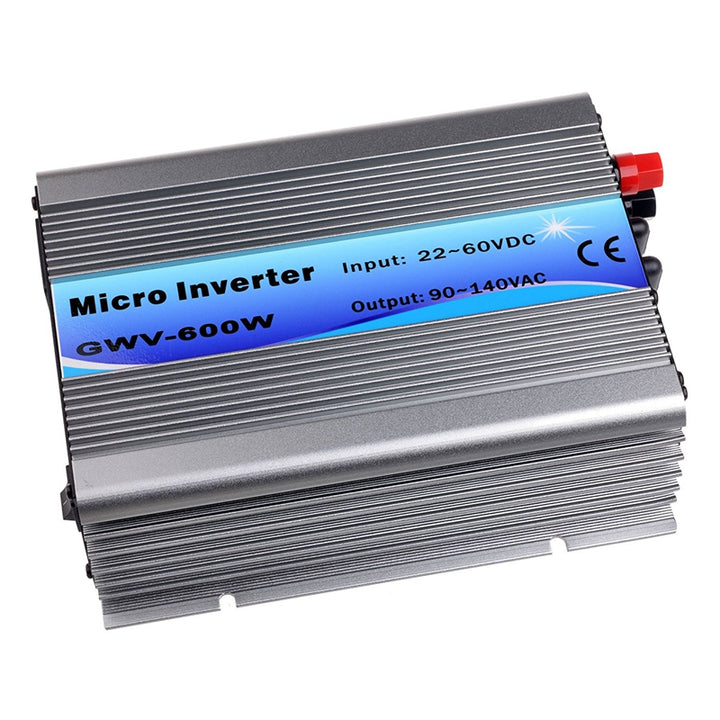

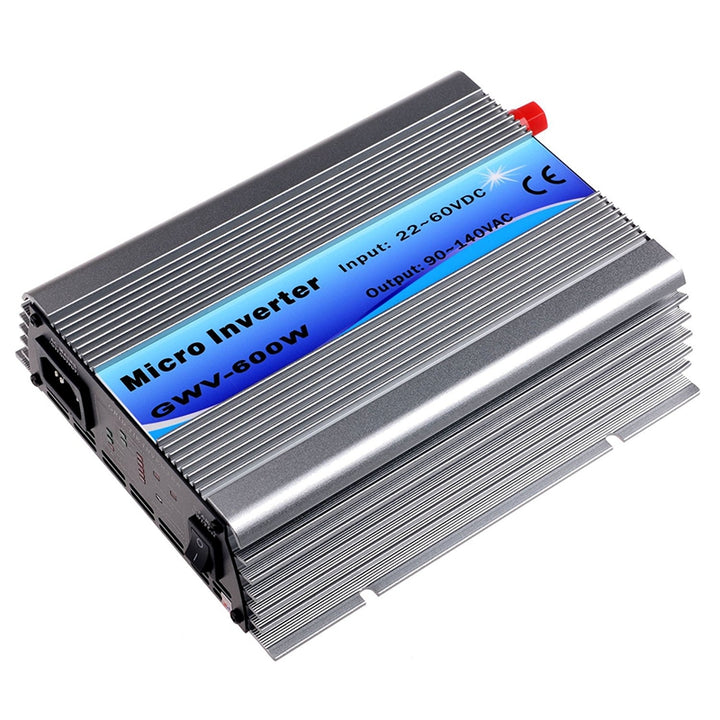

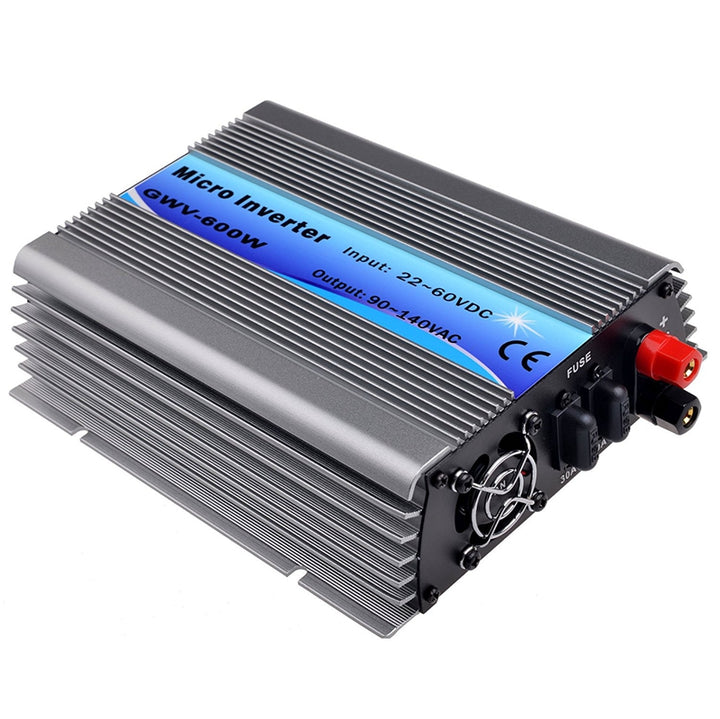

600W,DC30-55V Version:


600W MPPT Grid Tie Inverter, Pure Sine Wave Inverter
DC30-55V to AC230V,50Hz/60Hz Auto

Fit for 24V/30V/36V 60cells and 72cells Solar Panel,Voc:34-46V

Solar Panel Power: minimum 120W, maximum 650W

with MPPT Function and Stackable

Certification: CE RoHS



DC30-55V version is suitable for 24V/36V solar panel (Vmp30-36V; Voc38-46V)
Vmp = working voltage; Voc = open circuit voltage.
The starting voltage of the inverter is 30V. Therefore, the DC22V input cannot be used.
60V is only a momentary voltage, which is used as buffer protection and cannot be used as a working voltage input. Otherwise it will damage the inverter.
The solar panel voltage will decrease with the intensity of the sunlight. After the inverter starts at 30V, it will work even if the panel voltage drops. We designed a wider voltage input range to allow the inverter to output more power. After the voltage is lower than 15V, the working efficiency will start to decline.





How to match the inverter with solar panels and batteries：

A. Inverter work with solar panels.

16-28VDC range is for 36cells-Vmp:18-21V:Voc:20-24V solar panels.

30-55VDC range is for 60cells-Vmp:26-30V:Voc:34-38V or 72cells-Vmp:35-39V:Voc:42-46V. This range can suitable for two version solar panels.

B. Inverter work with battery.

If you want to use this grid tie inverter for battery, then please use 24VDC battery with 16-28VDC inverter. 36VDC battery with 30-55VDC inverter.

Because this inverter is designed for solar panels which with MPPT function. So we don't very suggest customers to use it for battery. It may short the inverter service life.If use a battery to power the inverter, please use a circuit breaker.


Please use a 10 square cable, the cable length is not recommended to exceed 4M. Tighten the DC terminal wiring. If the cable is too thin or the connection is loose, the inverter will be damaged.


What's In Box：

1 x 600W Solar Inverter

1 x English User's Manaul

1 x AC Cord(EU)
