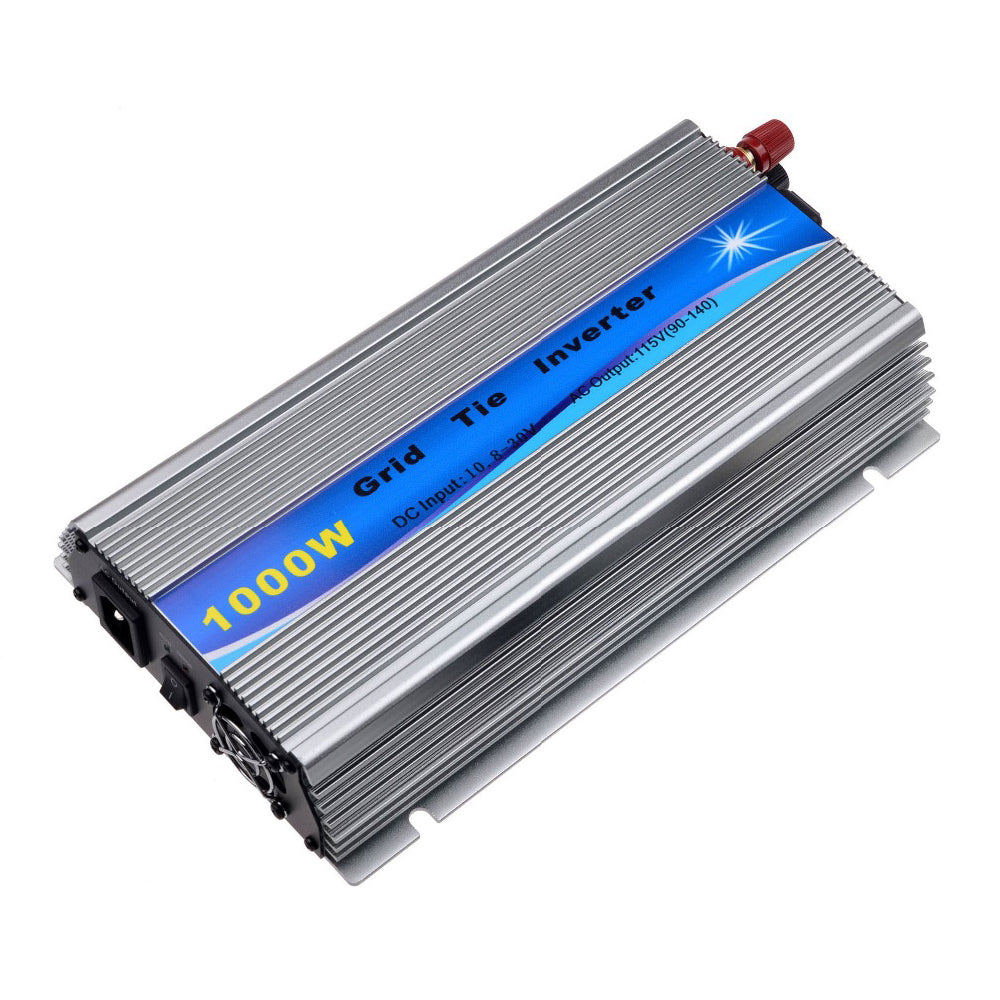

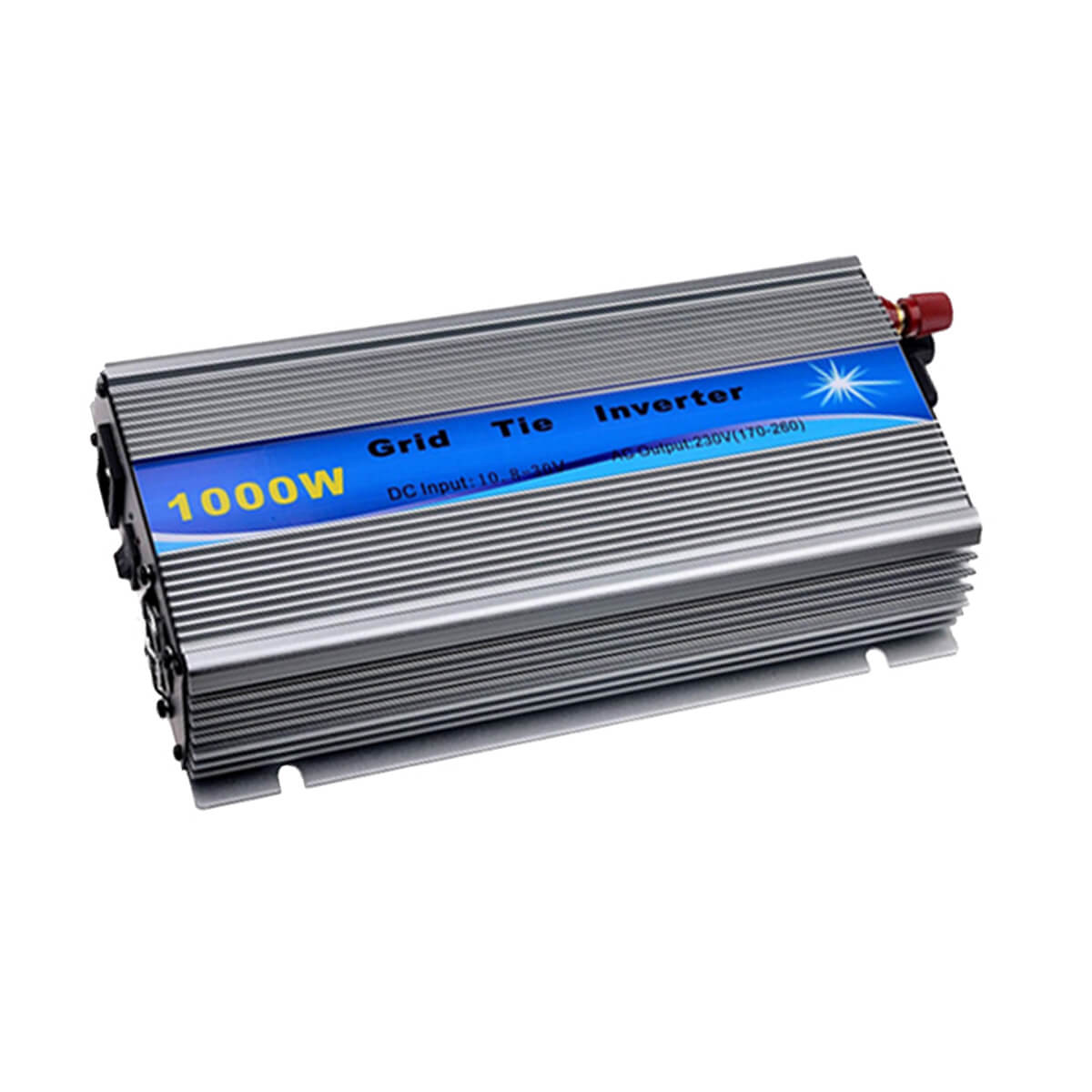

1000Watt 10.8-30V DC to 230V AC Solar Grid Tie Inverter

SKU: GTI-1000W-18V-220V-S

SKU: MPS-MAX 10.2KW-48V-M180A

1000Watt 10.8-30V DC to 230V AC Solar Grid Tie Inverter

Name: 1000Watt 10.8-30V DC to 230V AC Solar Grid Tie Inverter
Brand: Y&H
SKU: GTI-1000W-18V-220V-S
Price: 80.86 EUR
Availability: InStock

1000Watt 10.8-30V DC to 230V AC Solar Grid Tie Inverter

€80,86

289 Reviews!

€80,86

Title

Quantity:

SKU: MPS-MAX 10.2KW-48V-M180A

SKU: GTI-1000W-18V-220V-S

1000Watt 10.8-30V DC to 230V AC Solar Grid Tie Inverter

289 Reviews!

€80,86

Title

Quantity:

Product Attachments

User Manual of GTI-1000W-18V-220V-S

(14.34MB)

User Manual of GTI-1000W-18V-220V-S
(14.34MB)

Title

Warranty

24 Months Warranty

Warranty

24 Months Warranty

SKU: GTI-1000W-18V-220V-S

1000Watt 10.8-30V DC to 230V AC Solar Grid Tie Inverter

€80,86

Title

Quantity:

Product Attachments

User Manual of GTI-1000W-18V-220V-S

(14.34MB)

User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

—— 01

DIY Solar System, Reduce your electricity bill

The GTI series is the most basic model of grid-tied inverters and is designed for indoor installation. Its primary function is to convert DC (Direct Current) to AC (Alternating Current) and feed the generated electricity back into the grid, helping to reduce electricity bills. Additionally, an external display can be connected to monitor the inverter's AC output data in real-time. Please be Noted:The output need to be connected to the grid power, can not supply power directly to the AC loads.

—— 02

Inverter work with solar panels

The 10.8-30VDC input range is compatible with 36cells-Vmp:18-21V:Voc:20-24V solar panels. These panels should provide a minimum of 200W and can support up to a maximum of 1100W of power.

—— 03

Inverter work with battery

If you want to use this grid tie inverter for battery, then please use 24VDC battery with 10.8-30VDC inverter.
Because this inverter is designed for solar panels which with MPPT function. So we don't very suggest customers to use it for battery. It may short the inverter service life.If use a battery to power the inverter, please use a circuit breaker.

—— 04

Stackable connection

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid tie inverter 1000W of stack used is equal to 4000W, and the number of open stacks (No Quantitative Restrictions).

—— 05

MPPT technology

Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)

—— 06

Fan Cooling

Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.

—— 07

Multiple protections

Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection.

—— 01

DIY Solar System, Reduce your electricity bill

The GTI series is the most basic model of grid-tied inverters and is designed for indoor installation. Its primary function is to convert DC (Direct Current) to AC (Alternating Current) and feed the generated electricity back into the grid, helping to reduce electricity bills. Additionally, an external display can be connected to monitor the inverter's AC output data in real-time. Please be Noted:The output need to be connected to the grid power, can not supply power directly to the AC loads.

—— 02

Inverter work with solar panels

The 10.8-30VDC input range is compatible with 36cells-Vmp:18-21V:Voc:20-24V solar panels. These panels should provide a minimum of 200W and can support up to a maximum of 1100W of power.

—— 03

Inverter work with battery

If you want to use this grid tie inverter for battery, then please use 24VDC battery with 10.8-30VDC inverter.
Because this inverter is designed for solar panels which with MPPT function. So we don't very suggest customers to use it for battery. It may short the inverter service life.If use a battery to power the inverter, please use a circuit breaker.

—— 04

Stackable connection

In order to achieve higher power use requirements, the use of this product can be stacked, such as: 4 grid tie inverter 1000W of stack used is equal to 4000W, and the number of open stacks (No Quantitative Restrictions).

—— 05

MPPT technology

Creative MPPT tech makes efficiency higher than 99%. Peak conversion 80%. Consider the conversion rate of solar panel is about 80%, for example, if you need 500W power output from the inverter, you need to connect it to a solar panel that 500 / 0.8 / 0.8 equals about 780W, (780w * 0.8 * 0.8 = 500w)

—— 06

Fan Cooling

Intelligence Fan-on temperature >45℃ and off < 40℃. High-speed ventilation fans to help keep the inverter running at a low temperature.

—— 07

Multiple protections

Islanding; Short-circuit; converse connection; Low Voltage; Over Voltage; Over temperature Protection
