SKU: WVC-800W-220V-LCD

SKU: MPS-MAX 10.2KW-48V-M180A

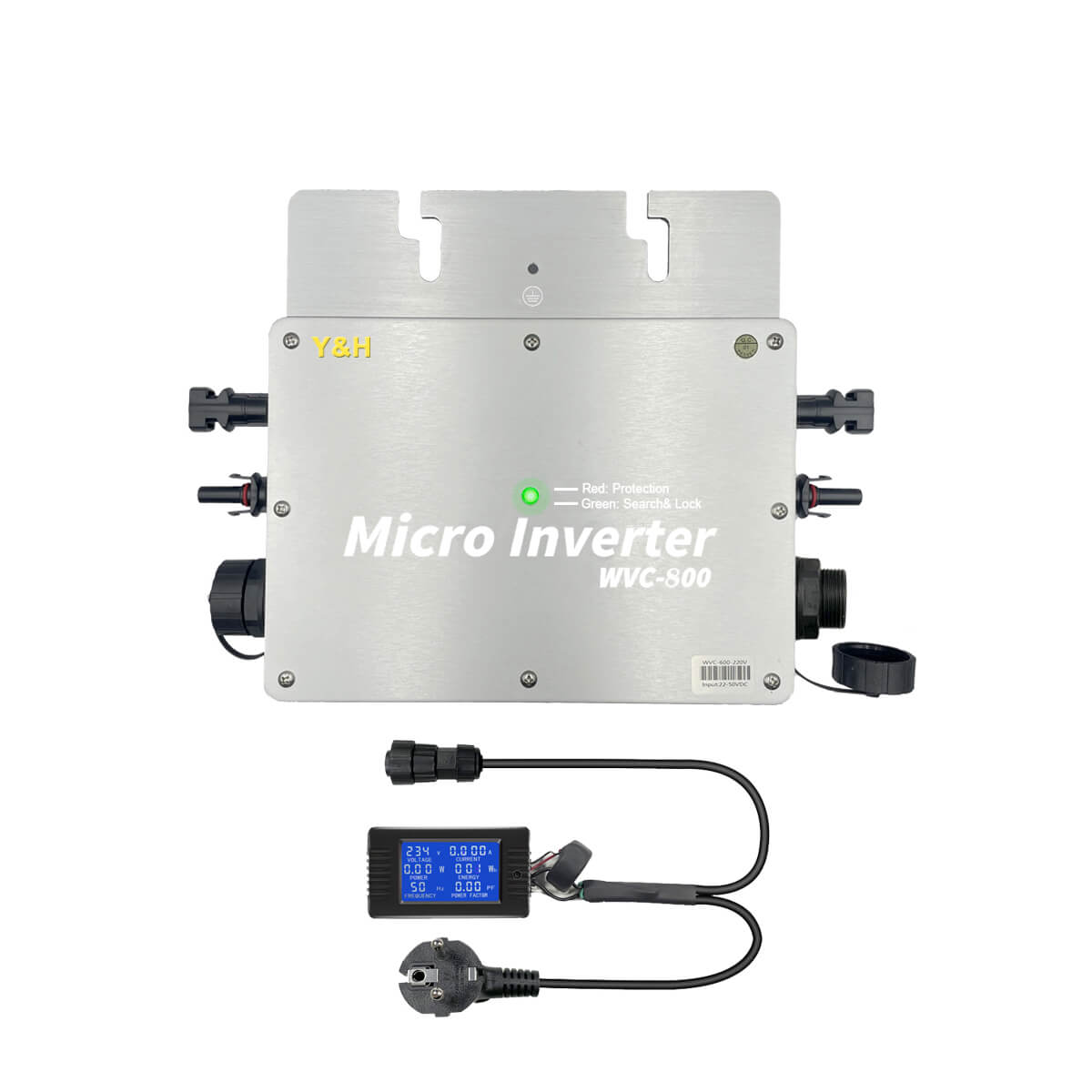

Y&H 800W netzgekoppelter Mikro-Wechselrichter wasserdicht IP65 MPPT DC30-42V PV Montaje AC180-260V Ausgang para módulo solar 30V 36V

Y&H 800W netzgekoppelter Mikro-Wechselrichter wasserdicht IP65 MPPT DC30-42V PV Montaje AC180-260V Ausgang para módulo solar 30V 36V

€103,86

289 Reviews!

€103,86
Title
Title

Quantity:

Quantity:

SKU: MPS-MAX 10.2KW-48V-M180A

SKU: WVC-800W-220V-LCD

Y&H 800W netzgekoppelter Mikro-Wechselrichter wasserdicht IP65 MPPT DC30-42V PV Montaje AC180-260V Ausgang para módulo solar 30V 36V

Y&H 800W netzgekoppelter Mikro-Wechselrichter wasserdicht IP65 MPPT DC30-42V PV Montaje AC180-260V Ausgang para módulo solar 30V 36V

289 Reviews!

€103,86
€103,86
Title
Title

Quantity:

Quantity:

Buy it with

Product Attachments

Product Attachments












User Manual of WVC-800W-220V-LCD

(14.34MB)












User Manual of WVC-800W-220V-LCD
(14.34MB)

Title
Title
Title

Warranty

24 Months Warranty

Warranty

24 Months Warranty

SKU: WVC-800W-220V-LCD

Y&H 800W netzgekoppelter Mikro-Wechselrichter wasserdicht IP65 MPPT DC30-42V PV Montaje AC180-260V Ausgang para módulo solar 30V 36V

€103,86
Title

Quantity:

Product Attachments



























User Manual of WVC-800W-220V-LCD


(14.34MB)




























User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

User Manual of MPS-MAX10.2K-48V-M180A

(14.34MB)

——   01

Save on Bills with Our Micro Grid-Tied Inverter

A micro grid-tied inverter efficiently converts DC power from solar panels into AC power for your home. By connecting it to your solar setup and plugging it into your outlets, you can supply power directly to your appliances, reduce your electricity costs, and start saving today. The inverter allows excess energy to be exported to the grid while automatically shutting down during grid failures for safety. Once the grid is restored, it resumes supplying power and exporting surplus energy. If the solar output is insufficient, the inverter supplements the deficit with power from the grid, ensuring a seamless energy experience.





——   02

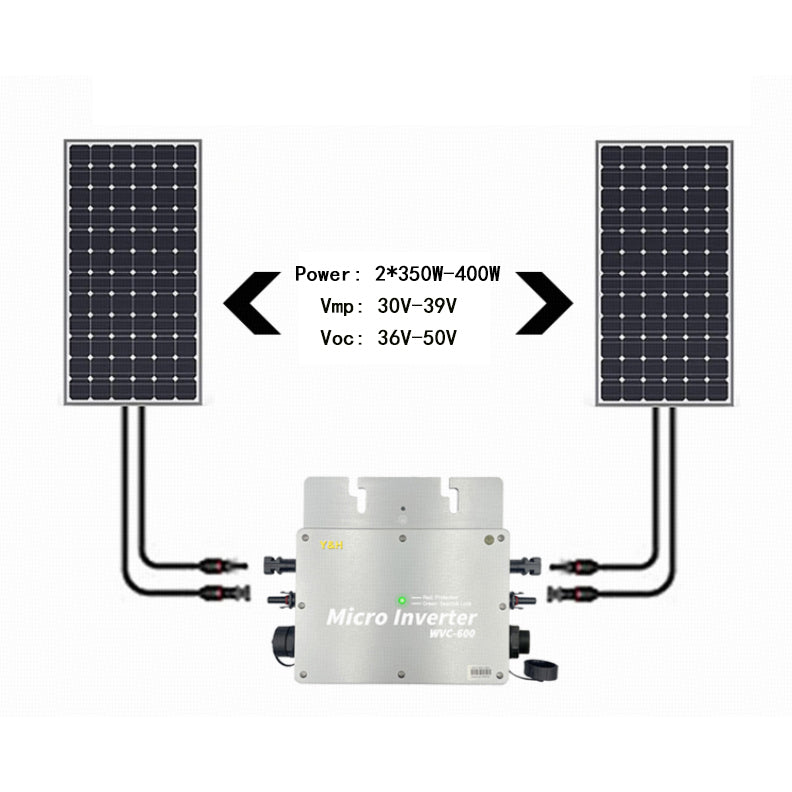

How to Choose Panel Voltage and Power

The total power of the solar panels should not exceed 800W. We recommend utilizing two solar panels, each rated between 350W and 400W. Their open-circuit voltage (Voc) should fall within the range of 36V to 50V, with an ideal target between 40V and 46V. It’s crucial that both panels have identical specifications for proper connection. Additionally, the DC input features an MC4 connector, which safeguards against the reversal of positive and negative terminals.

——   03

How to Connect WVC AC Output to the Grid

To connect the WVC inverter’s AC output to your household grid, start by turning on the socket switch to activate the power supply. We have improved our AC wiring solution to reduce the risk of incorrect connections between the live, neutral, and ground wires, making the installation process faster and more efficient. By following these steps, you can ensure a safe and reliable connection to your electrical system.









——   04

Stackable Connection

This feature allows a small solar grid-tie inverter to become a high-power inverter. To meet higher energy consumption needs, this product can be stacked. For example, stacking three 800W grid-tie inverters will yield a total output of 2400W, with no limit on the number of inverters that can be stacked.





















——   05

Installation Environment

The inverter has an IP65 waterproof rating, meaning it is resistant to water but not entirely waterproof. It can be installed outdoors, preferably on the back of the panel.





















——   06

MPPT Technology

With MPPT technology, it achieves efficiency levels exceeding 99% and boasts a peak conversion rate of 80%. This is particularly significant, considering that solar panels typically operate at around 80% efficiency.



















——   07

Advanced Pure Sine Wave Inverter

The advanced pure sine wave inverter utilizes cutting-edge technology to deliver clean and reliable power, effectively safeguarding your electronics and extending the lifespan of your home appliances.



















——   08

Efficient Cooling and Led Display

Our inverters are made from aluminum alloy, which effectively dissipates heat. They feature over-temperature protection that automatically reduces output efficiency or halts operation when temperatures exceed safe levels, allowing the unit to cool down before restarting. Additionally, the LED display clearly shows the operating condition, providing users with real-time feedback on the device's performance.





















——   09

Safe Installation and Comprehensive Protection

Micro inverters operate within a safe voltage range, allowing users to install them independently without the need for professional training or electricians. With VDE and CE certifications, these devices ensure safety while offering comprehensive protection features, including islanding protection, voltage protection, frequency protection, temperature protection, and power protection.



















——   01

Save on Bills with Our Micro Grid-Tied Inverter

A micro grid-tied inverter efficiently converts DC power from solar panels into AC power for your home. By connecting it to your solar setup and plugging it into your outlets, you can supply power directly to your appliances, reduce your electricity costs, and start saving today. The inverter allows excess energy to be exported to the grid while automatically shutting down during grid failures for safety. Once the grid is restored, it resumes supplying power and exporting surplus energy. If the solar output is insufficient, the inverter supplements the deficit with power from the grid, ensuring a seamless energy experience.







——   02

How to Choose Panel Voltage and Power

The total power of the solar panels should not exceed 800W. We recommend utilizing two solar panels, each rated between 350W and 400W. Their open-circuit voltage (Voc) should fall within the range of 36V to 50V, with an ideal target between 40V and 46V. It’s crucial that both panels have identical specifications for proper connection. Additionally, the DC input features an MC4 connector, which safeguards against the reversal of positive and negative terminals.

——   03

How to Connect W AC Output to the Grid

To connect the WVC inverter’s AC output to your household grid, start by turning on the socket switch to activate the power supply. We have improved our AC wiring solution to reduce the risk of incorrect connections between the live, neutral, and ground wires, making the installation process faster and more efficient. By following these steps, you can ensure a safe and reliable connection to your electrical system.








——   04

Stackable Connection

This feature allows a small solar grid-tie inverter to become a high-power inverter. To meet higher energy consumption needs, this product can be stacked. For example, stacking three 800W grid-tie inverters will yield a total output of 2400W, with no limit on the number of inverters that can be stacked.













——   05

Installation Environment

The inverter has an IP65 waterproof rating, meaning it is resistant to water but not entirely waterproof. It can be installed outdoors, preferably on the back of the panel.















——   06

MPPT Technology

With MPPT technology, it achieves efficiency levels exceeding 99% and boasts a peak conversion rate of 80%. This is particularly significant, considering that solar panels typically operate at around 80% efficiency.















——   07

Advanced Pure Sine Wave Inverter

The advanced pure sine wave inverter utilizes cutting-edge technology to deliver clean and reliable power, effectively safeguarding your electronics and extending the lifespan of your home appliances.













——   08

Efficient Cooling and Led Display

Our inverters are made from aluminum alloy, which effectively dissipates heat. They feature over-temperature protection that automatically reduces output efficiency or halts operation when temperatures exceed safe levels, allowing the unit to cool down before restarting. Additionally, the LED display clearly shows the operating condition, providing users with real-time feedback on the device's performance.













——   09

Safe Installation and Comprehensive Protection

Micro inverters operate within a safe voltage range, allowing users to install them independently without the need for professional training or electricians. With VDE and CE certifications, these devices ensure safety while offering comprehensive protection features, including islanding protection, voltage protection, frequency protection, temperature protection, and power protection.













Title

Warranty

2 Months Warranty

Warranty

12 Months Warranty

Warranty

12 Months Warranty

Title
Title

Y&H Inverter Specifications

Important Notice:
Please Read Product Manual Before Buying. Detailed specifications and features provided. Contact our support team for assistance. Thank you for choosing us.

Model

WVC-800W-220V-LCD

Rated Load Power
